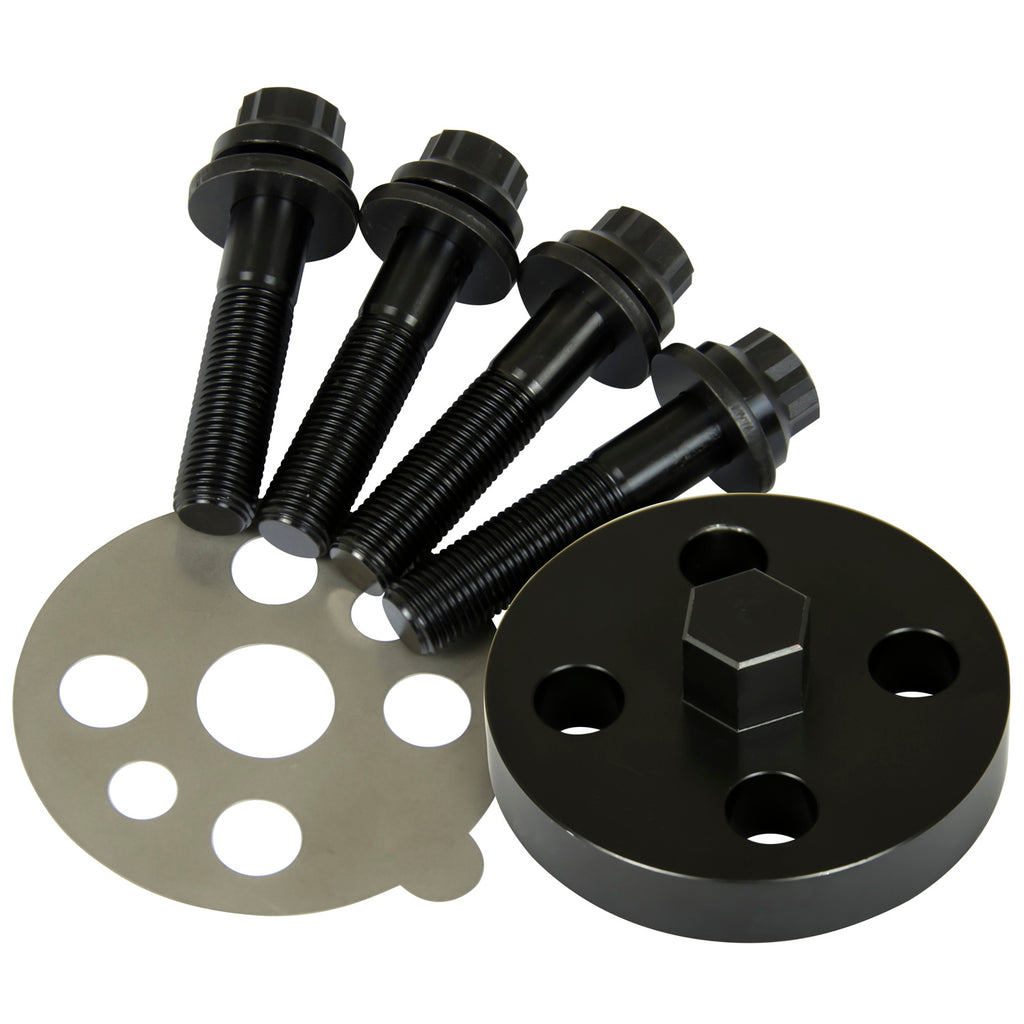

For 1989-2018 5.9L and 6.7L Cummins performance engine builds above 700hp / 1,250 ft-lbs torque Fluidampr recommends damper installation with the Full Power Kit for secure mounting. Kit features textured finished torque plate with 5/8? hex head for barring engine, diamond impregnated friction washer, and heat treated high strength bolts from ARP?. Use in conjunction with Fluidampr Cummins Drill Pin Kit (p/n 300002) for applications above 3,500rpm.

• Secure mounting.
• High quality hardware.

Vehicle Specific

• 1989-2018 Dodge / Ram 5.9L and 6.7L Cummins. Above 700hp / 1250ft-lbs torque.

Attributes:

• Brand Name: Fluidampr
• GTIN: 00815293003351
• Friction Washer Coating: Diamondize
• Friction Washer Depth: .0080
• Friction Washer Material: Spring steel
• Socket Size: 14mm 12pt
• Torque Plate Depth: .50
• Torque Plate Diameter: 2.75

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Announced

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 9 x 7 x 3 inches
• Weight: 2 POUNDS

PDF:
