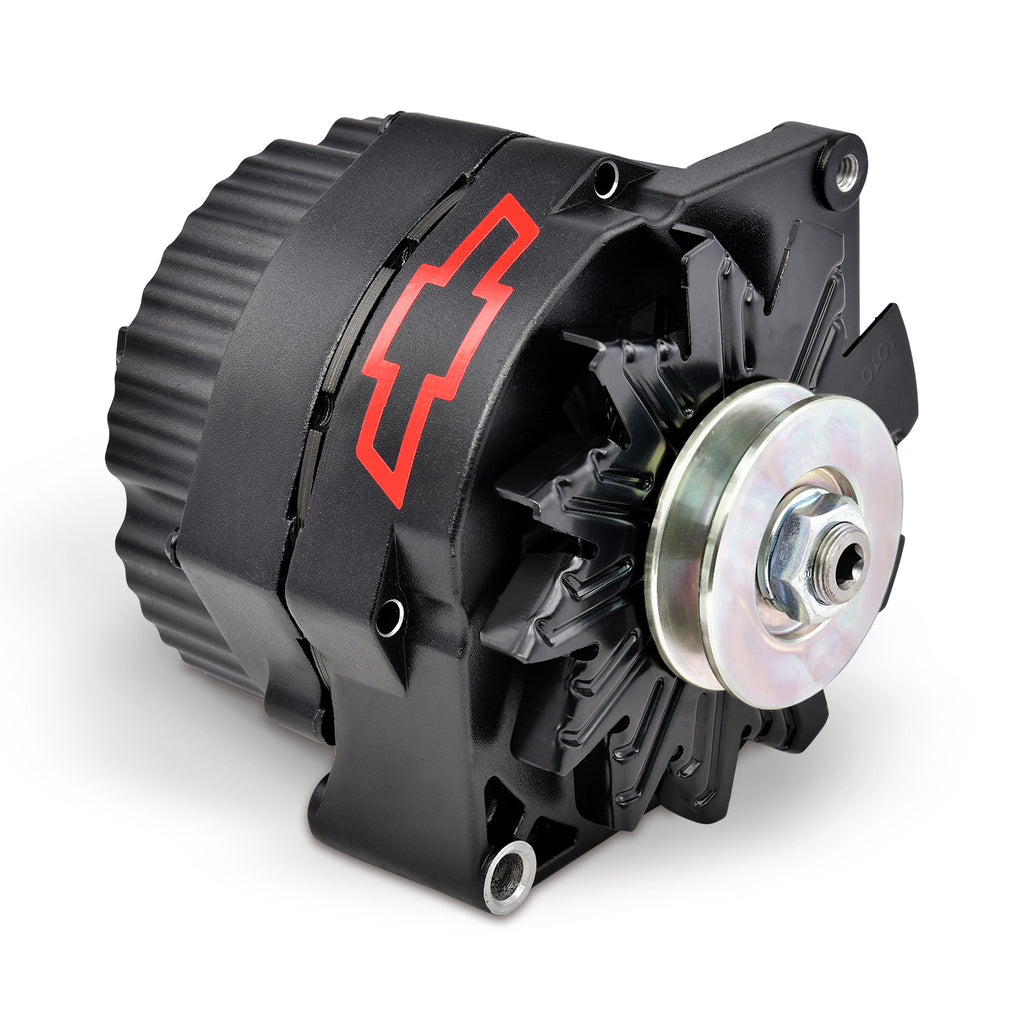

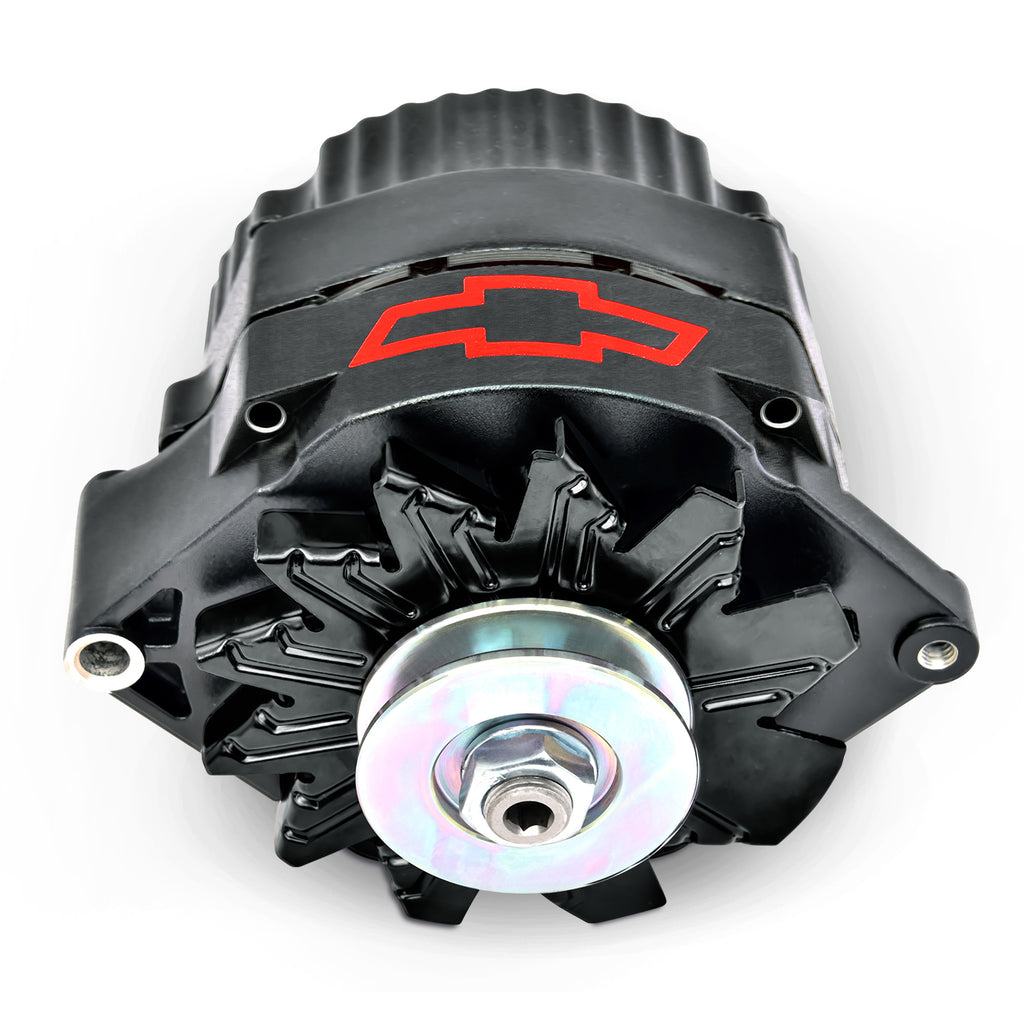

Now it is possible to complete your engines compartment's Black Crinkle look with a matching alternator. 100% NEW with absolutely no re-built components. Assured quality with generous, over-spec amperage, a machined pulley, and the popular Chevy Bowtie Emblem in red. Each unit is supplied with its own individual Quality Assurance graph documenting its operating performance. For a new level of functionality, insist on these 100% new Bowtie alternators.
Attributes:
- Brand Name: Proform
- GTIN: 00037995416622
- AC Service Tap: No
- Amperage Output: 100 AMP
- Amperage Rating: 100
- Applications: Chevy Small Block 262 to 400 Engines 1971 to 1987; Chevy Big Block 402 to 454 Engines 1970 to 1986; Pontiac 301 to 455 Engines 1962 to 1979; Oldsmobile 215 to 455 Engines 1963 to 1984; Oldsmobile 260 to 350 Diesel Engines 1978 to 1984; Buick 215 to 455 Engines 1963 to 1979
- Brushless: No
- Case Circumference: 17.5
- Case Color: Black
- Case Material: Aluminum
- Case Style: 10SI Style
- Color: Black
- Decoupled Or Clutch Pulley: Yes
- Distance Between Mounting Feet: 6.133
- Drive End To Pulley 1st Groove Distance: 1.4
- Drive End To Rotor Shaft End Distance: 6
- Emblem: Chevy Bowtie Emblem
- External Fan Included: Yes
- External Regulator Included: Yes
- Family: CS130
- Fan Type: Internal
- Feature/Benefit: Black Crinkle alternator with red Bowtie to match other black crinkle parts.
- Finish: Black Crinkle
- Ground Type: Positive
- Mounting Type: Standard
- One Wire Capable: Yes
- Outside Pulley Diameter: 2.621
- Plug Clock Rear View Main Mounting Ear at 6 O Clock: 12
- Pulley Belt Type: V-Belt
- Pulley Cogged Quantity: 1
- Pulley Diameter: 2 1/2 inch
- Pulley Groove Quantity: 0
- Wire Type: 1-Wire
Extended Information:
- Country of Origin: China
- Emissions : 1
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 7 x 7 x 7 inches
- Weight: 11.4 POUNDS
