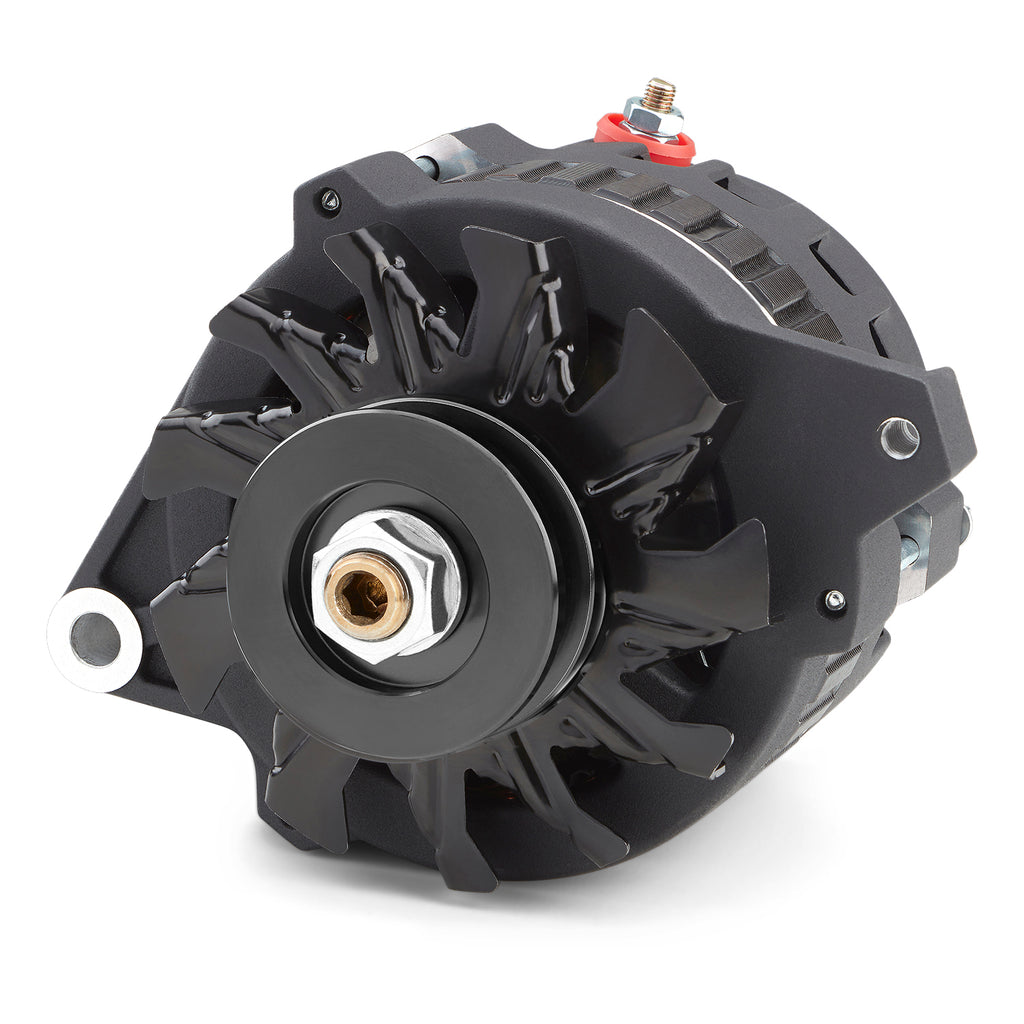

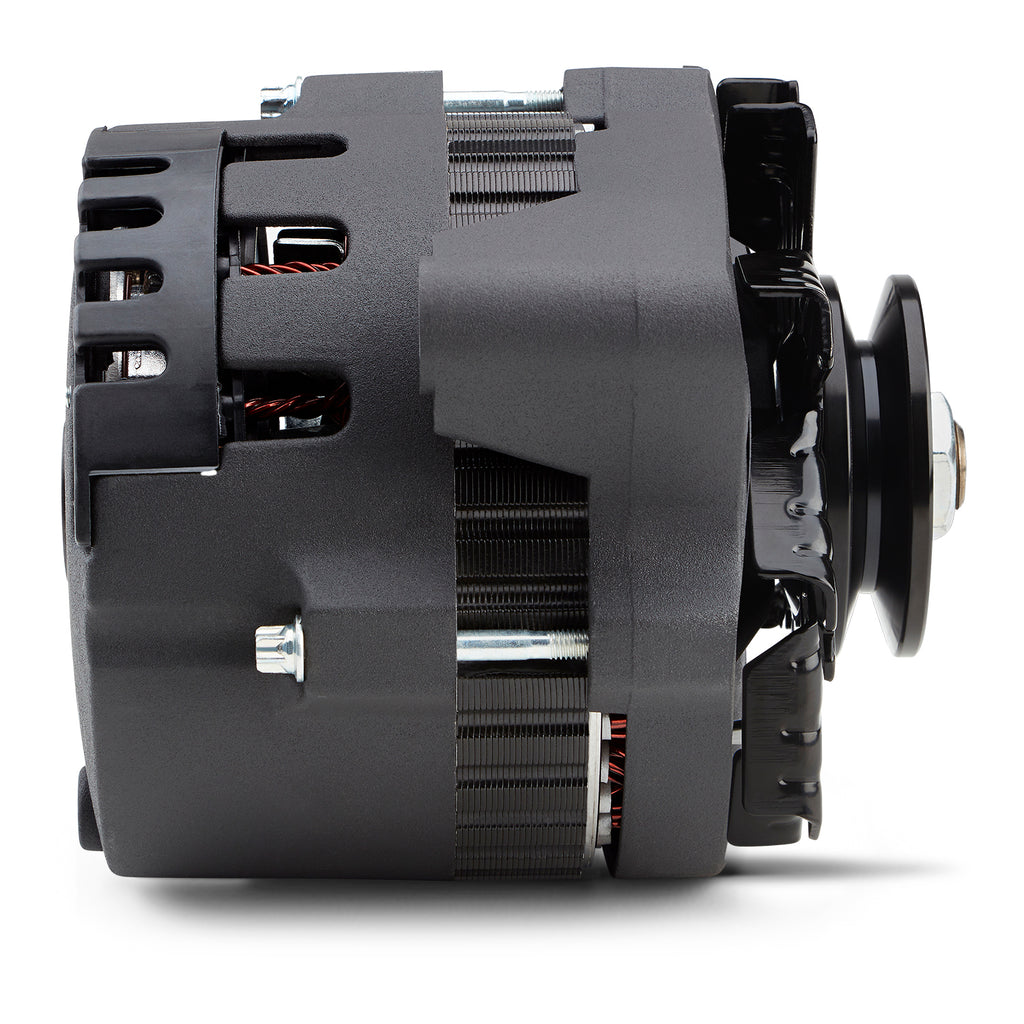

PROFORM's NEW CS130 160 AMP Alternator for Small Block Chevy 305-350 and Big Block Chevy 402-454 engines is a 1-wire, CS130 Case Style, complete with Internal Regulator. The External Fan Style Alternator features a v-belt pulley, black crinkle finish and is NOT made with re-man components. Each alternator is produced by highly specialized machines, assembled by highly trained personnel using dedicated fixtures and equipment - 100% New. Sold individually.
Attributes:
- Brand Name: Proform
- GTIN: 00037995710805
- AC Service Tap: No
- Amperage Output: 160 AMP
- Amperage Rating: 160
- Brushless: No
- Case Circumference: 17
- Case Color: Black
- Case Material: Aluminum
- Case Style: CS-130
- Color: Black
- Decoupled Or Clutch Pulley: Yes
- Distance Between Mounting Feet: 6.133
- Drive End To Pulley 1st Groove Distance: 1.4
- Drive End To Rotor Shaft End Distance: 6
- External Fan Included: Yes
- External Regulator Included: Yes
- Family: CS130
- Fan Type: Internal
- Feature/Benefit: A manufacturing break-through has enabled PROFORM to offer 100% NEW alternators with the same affordability as other brands' re-built models!
- Finish: Black Crinkle
- Ground Type: Positive
- Mounting Type: Standard
- One Wire Capable: Yes
- Outside Pulley Diameter: 2.621
- Part Type: Alternator
- Plug Clock Rear View Main Mounting Ear at 6 O Clock: 12
- Pulley Belt Type: V-Belt
- Pulley Cogged Quantity: 1
- Pulley Diameter: 2 1/2 inch
- Pulley Groove Quantity: 0
- Regulator Type: Internal
- Thread Size: M8-1.25
- Voltage: 12 Volt
- Wire Type: 1-Wire
Extended Information:
- Country of Origin: China
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 7 x 7 x 7 inches
- Weight: 10.86 POUNDS
