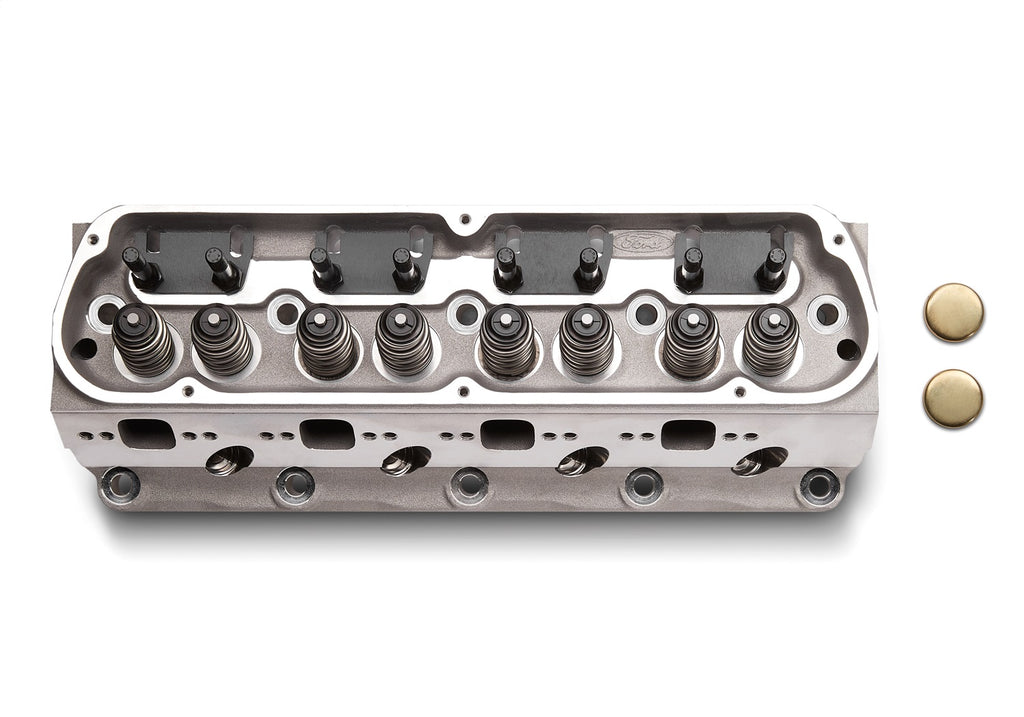

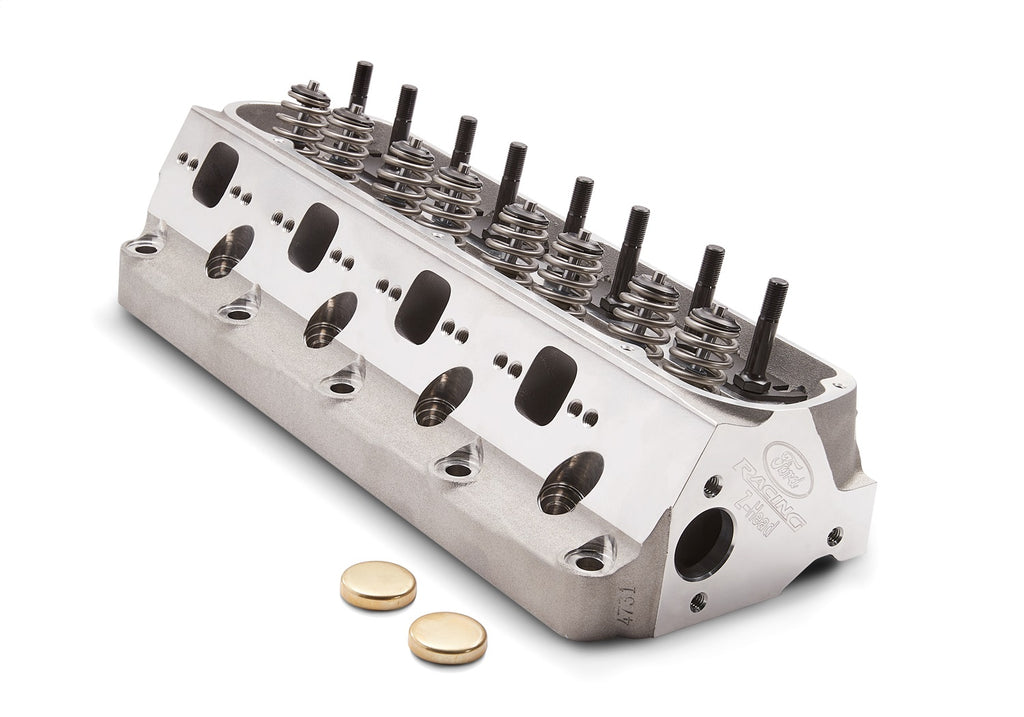

Cast from prime A356 T6 aluminum, these 'Z' heads from Ford Racing were designed using solid modeling technology. They feature high-flow ports and steel alloy intake and exhaust valve seats installed (they do require a competition valve job and bowl blending). The manganese-bronze valve guides are installed with a semi-finished I.D. and the combustion chambers are CNC-machined. Laser-cut guideplates are included, and they accept both tapered seat and gasket-style 14mm spark plugs.
- Cast From Prime A356 T6 Aluminum
- Custom Heads May Be Required
- Made in the USA
- Heads are Cast w/High Flow Ports
- 20 Degree Inline Valves
- Steel Alloy Intake/Exhaust Valve Seats
- Manganese-Bronze Valve Guides
- 63cc CNCd Combustion Chamber
- 204cc Intake Port Volume As Cast
- 85cc Exhaust Port Volume As Cast
- Raised Exhaust Port Exit
Attributes:
- Brand Name: Ford Performance Parts
- GTIN: 00756122233818
- Cylinder Head Type: Rectangular Port
- Emission: N/A
- Engine Make/Size: Ford 302-351W
- Finish: Cast Aluminum
- Preparation: Bolt On (Not Required)
- Type: Complete
- Usage: Street/Performance
- WARNING CA Proposition 65: No
Extended Information:
- Country of Origin: United States
- Emissions : Racing or Pre-Emissions Use Only
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 21.5 x 9.5 x 7.5 inches
- Weight: 31.8 POUNDS
