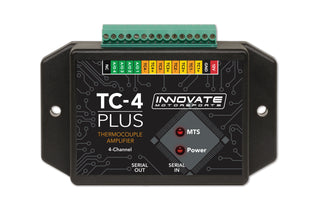

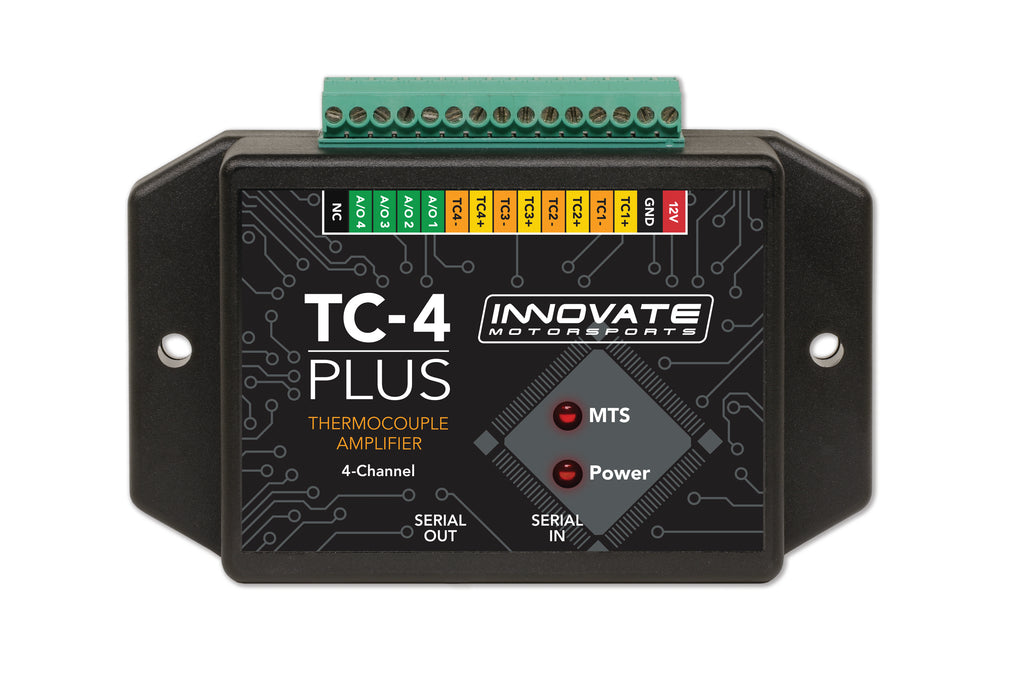

The Tc-4 Plus Is 4 Channel Type-K Thermocouple Amplifier Device That Can Be Used A Stand-Alone System Or As Part Of A Mts (Modular Tuning System). The Tc-4 Plus Includes A Digital Input/Output, 4 Full-Programmable Analog Outputs, And Is Ideal For Applications Such As Dynamometers, Data Acquisition Systems, Or Standalone Ecus. The Tc-4 Is Also A Key Component Of Innovate Motorsports Modular Tuning System (Mts). Using The Tc-4 Pluss Serial Ports You Can Daisy-Chain Other Innovate Devices Such As The Mtx-L, Lm-2, Lc-2, And Ssi-4 Plus.
- K-Type thermocouple amplifier that adds 4 temperature inputs to an MTS Log Chain
- Temperature range 32-1999 deg F, 0- 1093 deg C
- 4-Configurable linear 0-5V analog outputs (one per input)
- The TC-4 PLUS can be used to measure other temperature metrics such as intercooler inlet, outlet temperature and catalytic converter
- The TC-4 PLUS includes the TC-4 PLUS, Serial Program Cable, Molex to Molex Patch Cable (to daisy chain with other MTS compatible devices), and manual.
Attributes:
- Brand Name: Innovate Motorsports
- GTIN:
- Add-On: 3877
- Included Wire Harness: 3840, 3846
- Related Item: 77020
- Upsell: 3895
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Announced
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Weight: 0 POUNDS
