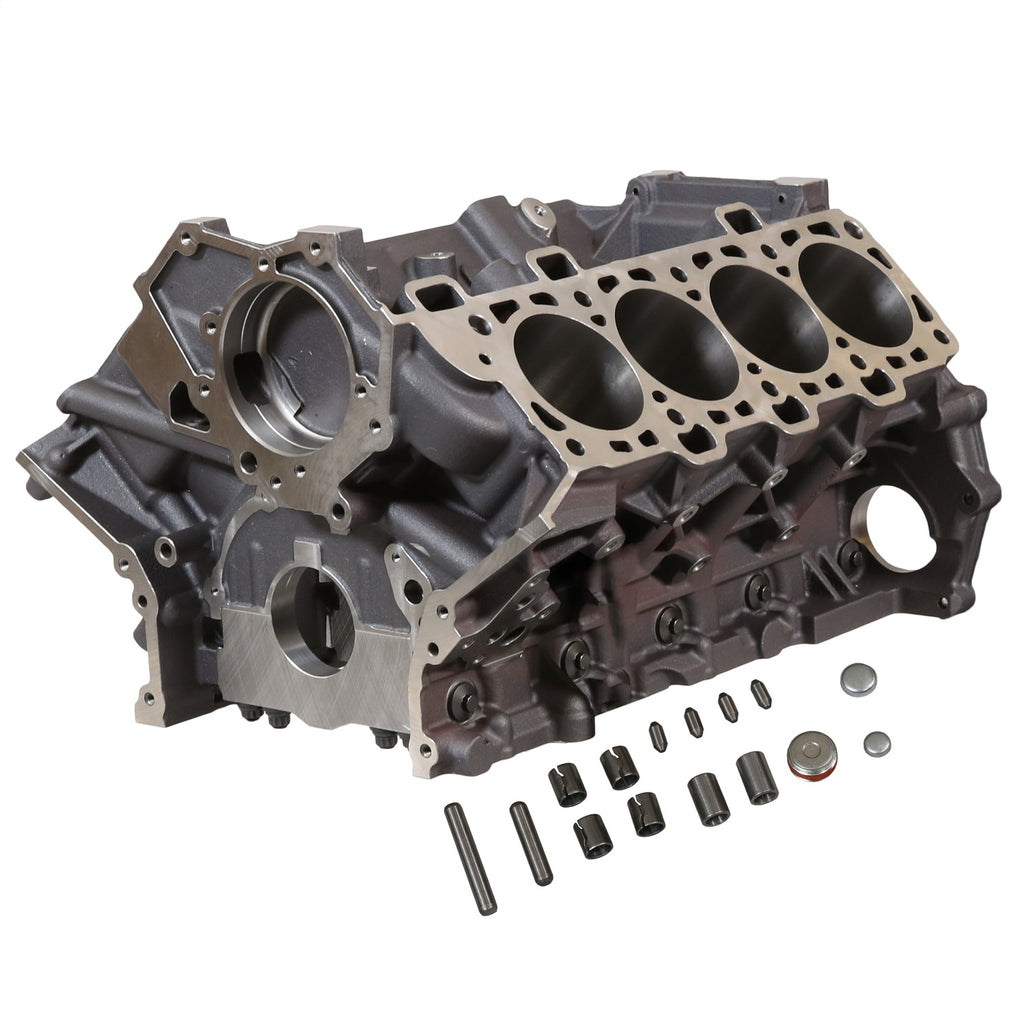

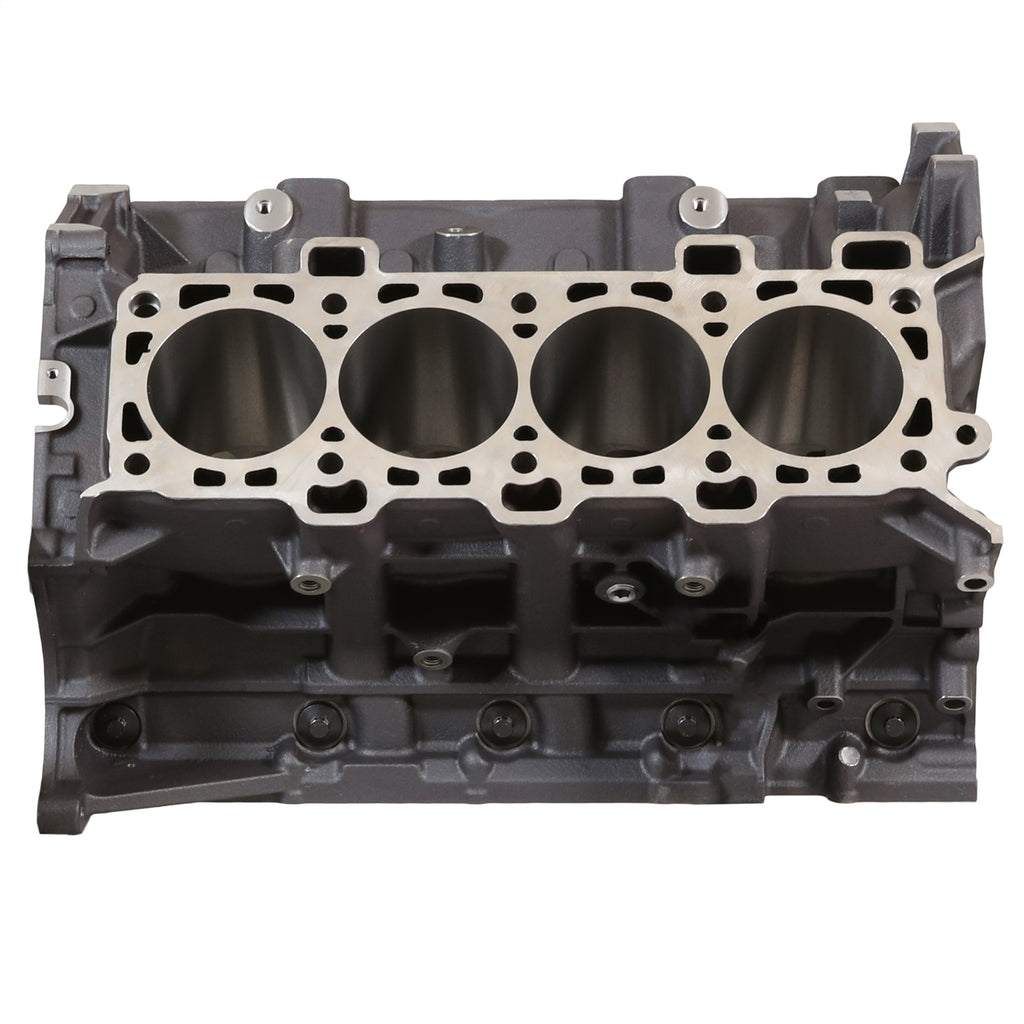

Ford Performance cast iron version of the 2011-2017 Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort/boosted Coyote engine builds.
- Deck Height 227 mm (8.937 in.)
- Billet Steel 6 Bolt Main Caps w/Arp Hardware
- Accepts Gen 1 And Gen 2 Coyote 5.0L Cylinder Heads
- Accepts Gen 1
- Gen 2 And Gen 3 Gt350 5.2L Cylinder Heads
- Finished Bore 92.2 mm (3.630 in.)
- Maximum Bore 95.0 mm (3.740 in.)
- Maximum Stroke 99 mm (3.897 in.)
- Maximum Displacement 5.6L
- Standard Coyote 100 mm Bore Spacing
- Lengthened Bores For Added Strength
- Revised Deck Design For Added Strength Around The Water Jackets
- Utilizes 12 mm Head Bolts
Attributes:
- Brand Name: Ford Performance Parts
- GTIN: 00756122014042
- WARNING CA Proposition 65: No
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 31 x 25 x 24 inches
- Weight: 228 POUNDS
