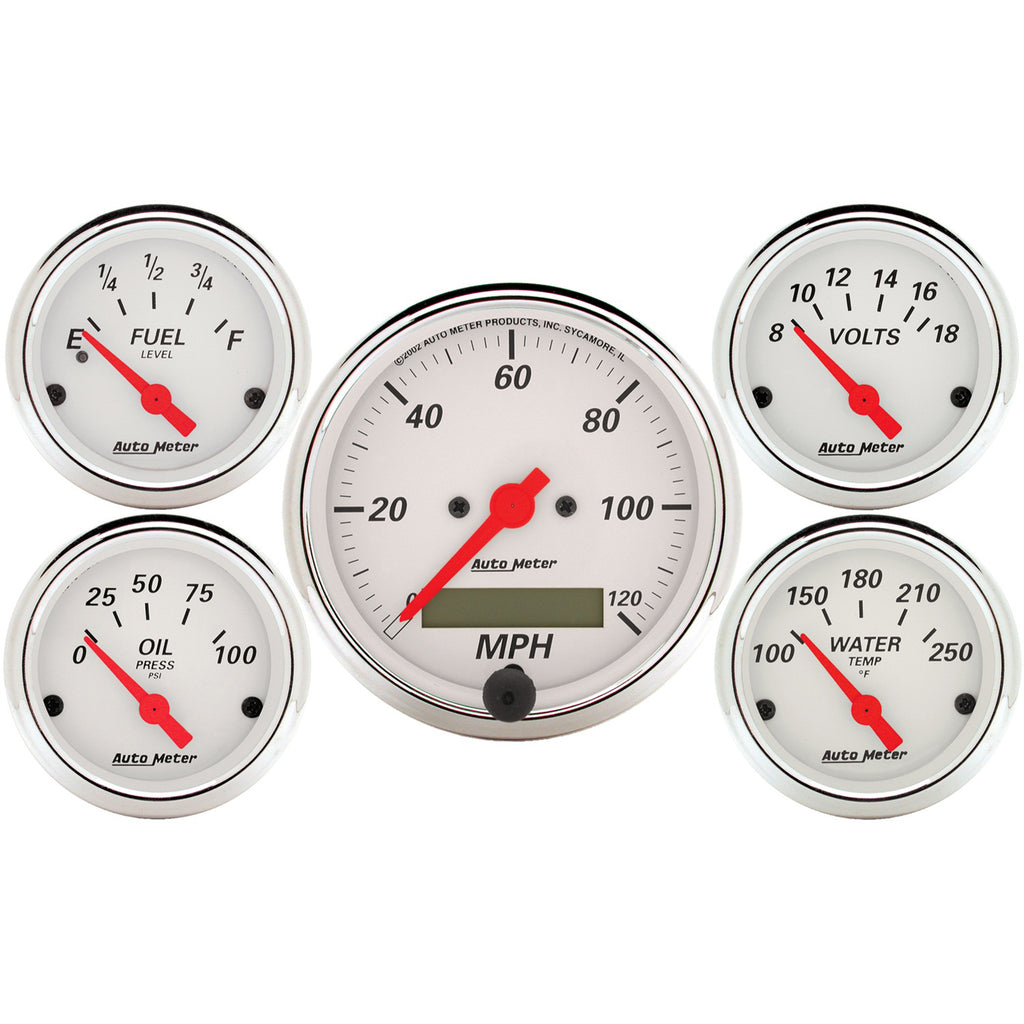

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
- Traditional incandescent lighting illuminates around the perimeter of the dial
- sending unit adapters (1/4" , 3/8" , and 1/2" NPT adapters)
- bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
- Kit includes fuel level sender (240E/33F)
- oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074013027
- Add-On: N/A
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 8.75 x 17.75 x 4.5 inches
- Weight: 4.85 POUNDS
PDF:
