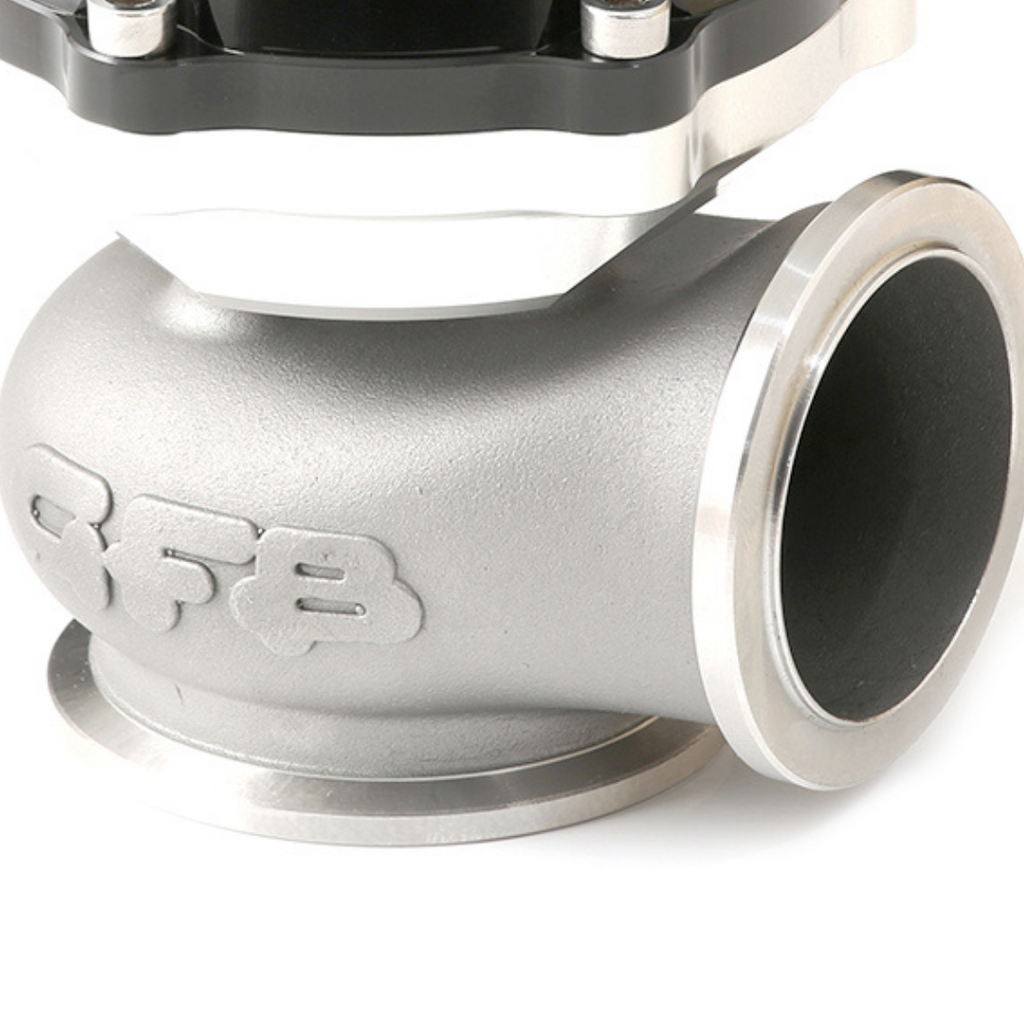

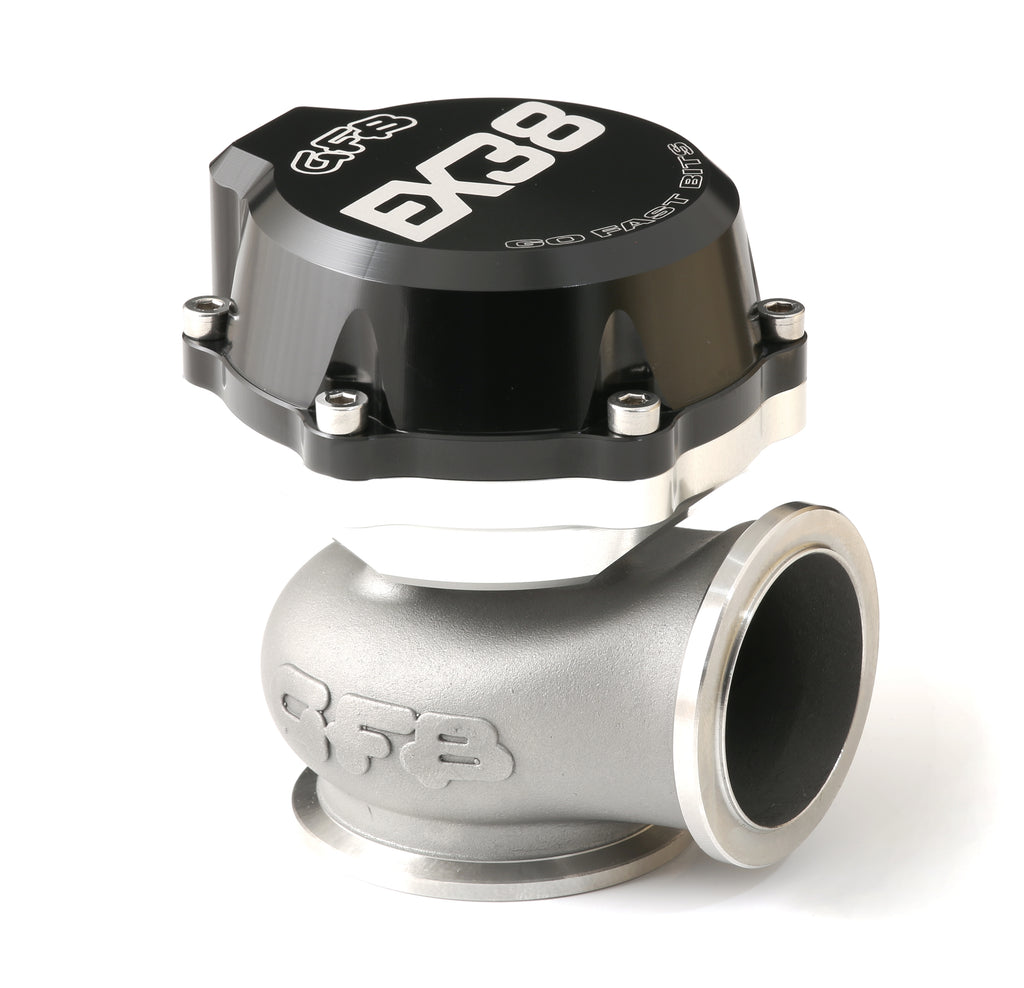

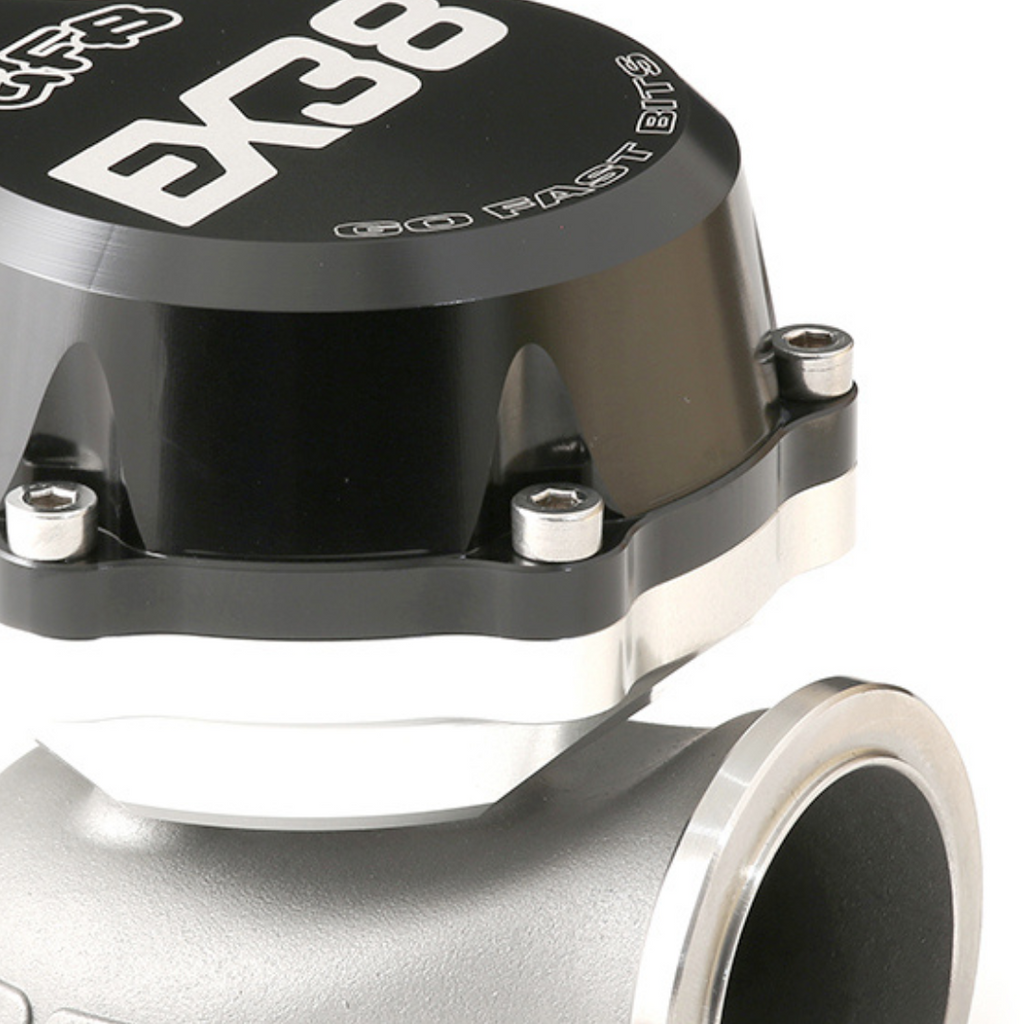

The 7002 wastegate features an investment cast body made from 253MA chromium-nickel stainless steel, a one-piece stainless steel valve, and a nomex reinforced diaphragm to cope with the extreme conditions and harsh environment of high-boost and exhaust temperatures. ? 38MM VALVE, ? V-BAND INLET AND OUTLET (DIRECTLY COMPATIBLE WITH TIAL MV-S FLANGES), ? 93MM OVERALL HEIGHT, ? SUPPLIED WITH 10PSI (OUTER) SPRING ADDITIONAL SPRINGS AVAILABLE ARE 5PSI (INNER) AND 7PSI (MIDDLE), ? COMBINE SPRINGS TO ACHIEVE BASE BOOST PRESSURE OF 5, 7, 10, 12, 15, 17 AND 22PSI

• MOST COMPACT WASTEGATE RANGE ON THE MARKET BODY, VALVE, SEAT AND ALL MOUNTING HARDWARE IS CNC MACHINED FROM HIGH-TEMP STAINLESS STEEL ACTUATOR HOUSING CNC MACHINED FROM BILLET 6061-T6 ALUMINIUM NOMEX-REINFORCED SILICONE DIAPHRAGM
• INTERNAL SHROUD PROTECTS VALVE STEM FROM EXCESSIVE HEAT AND PREVENTS CARBON-RELATED STICKING V-BAND CLAMP MOUNTING SYSTEM Manufactured In Australia under ISO 9001

Attributes:

• Brand Name: GFB Go Fast Bits
• GTIN: 09328022007090
• Add-On: 7205
• Grade Type: Performance
• Housing Color: Silver
• Housing Material: Stainless Steel

Extended Information:

• Country of Origin: Austrailia
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 17.5 x 16.5 x 8 centimeters
• Weight: 1.2 KILOGRAMS
