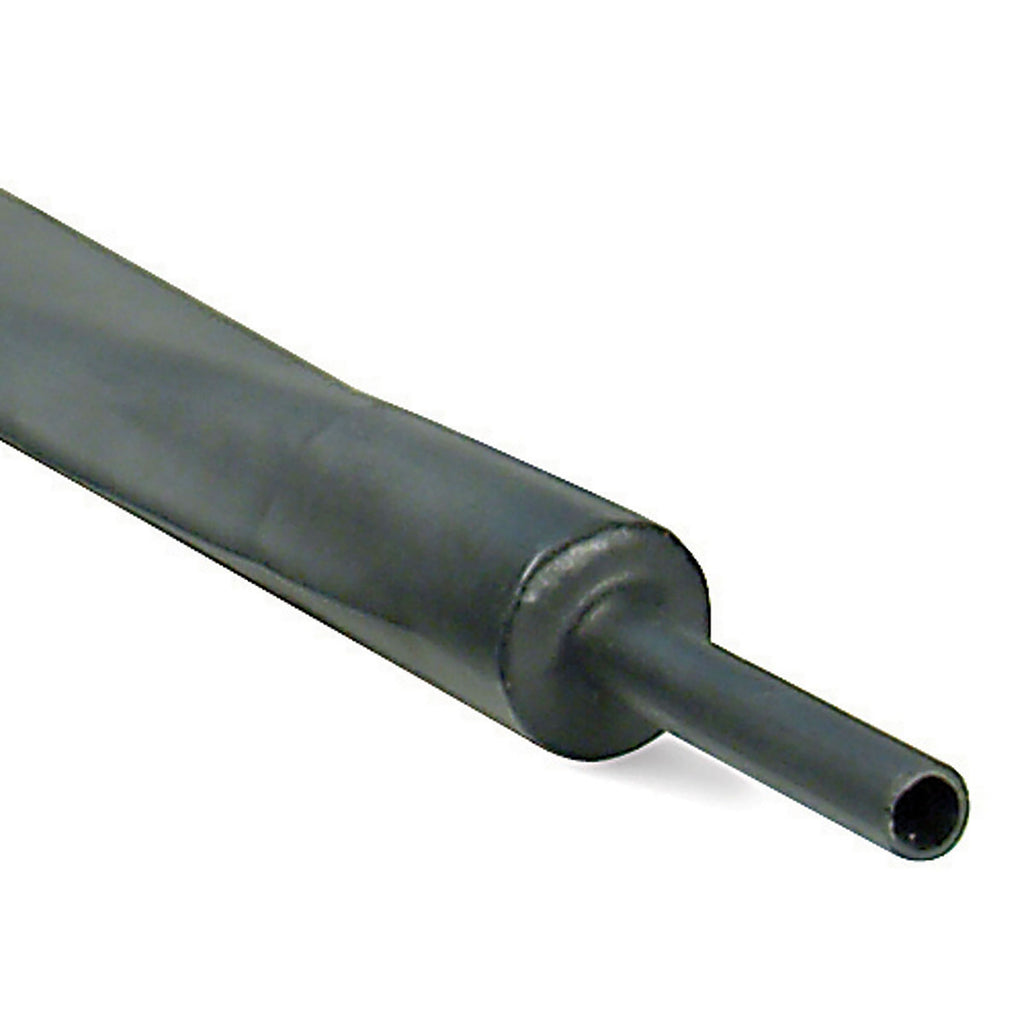

Professional grade military spec flexible polyolefin tubing provides excellent electrical insulation, protection from dirt, dust, solvents, and foreign materials as well as providing strain relief. Over expanded tubing easily fits over the end of wires and connectors and shrinks down to 33% of it's original diameter for a snug water-tight protective seal without a reduction in the tube's original length.Hi-Temp Shrink Tubes can be used to insulate wires, wire splicing, connections, terminals and meets the material functional properties of Military Spec DTL-23053DO NOT apply directly to exhaust components.
- Use To Insulate Wires/Connections/Terminals/Wire Splitting
- Alternate To Plastic Ties And Tape
- 3-1 Shrink Ratio
- Operating Temp Range -67Degrees F To 275Degrees F
- Thick Wall Construction And Remains Flexible
- Max Operating Temp 394 Degrees F For Short Duration
- Easy To Install Apply At 120 To 180 Degrees F Using Heat Gun
- Offers Clean Professional Look
- Meets MIL Spec DTL-23053/5C
- Flame Retardant
Attributes:
- Brand Name: Design Engineering
- GTIN: 00607078108340
- Case Included: No
- Color: Black

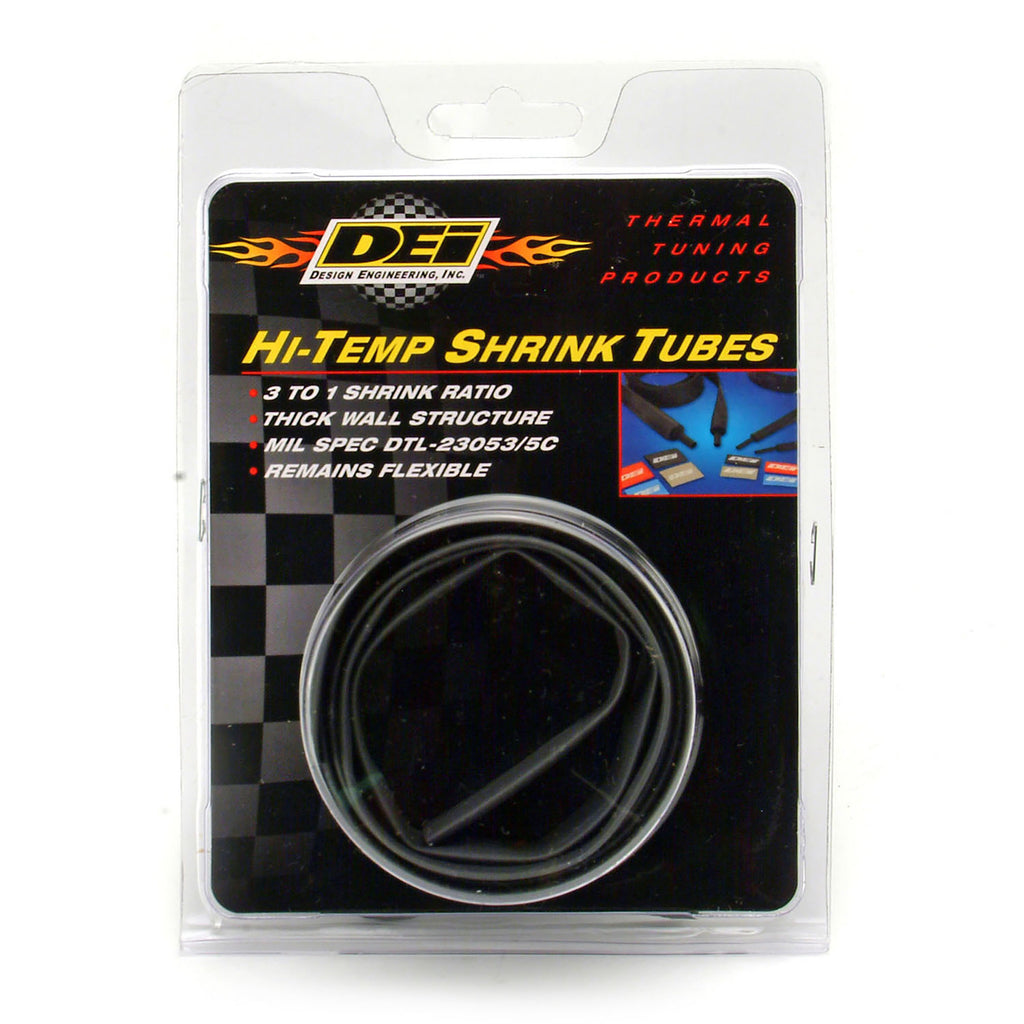

- Includes: One 48 inch length of 18mm heat shrink tubing.
- Length: 1.5
- Material: Heat Shrink Tubing
- Maximum Diameter: 12
- Radiant Heat Resistance: 275°F
- Tube Wall Thickness: 1
- Waterproof: Yes
Extended Information:
- Country of Origin: TW
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 2 x 5.25 x 7.25 inches
- Weight: 0.18 POUNDS
