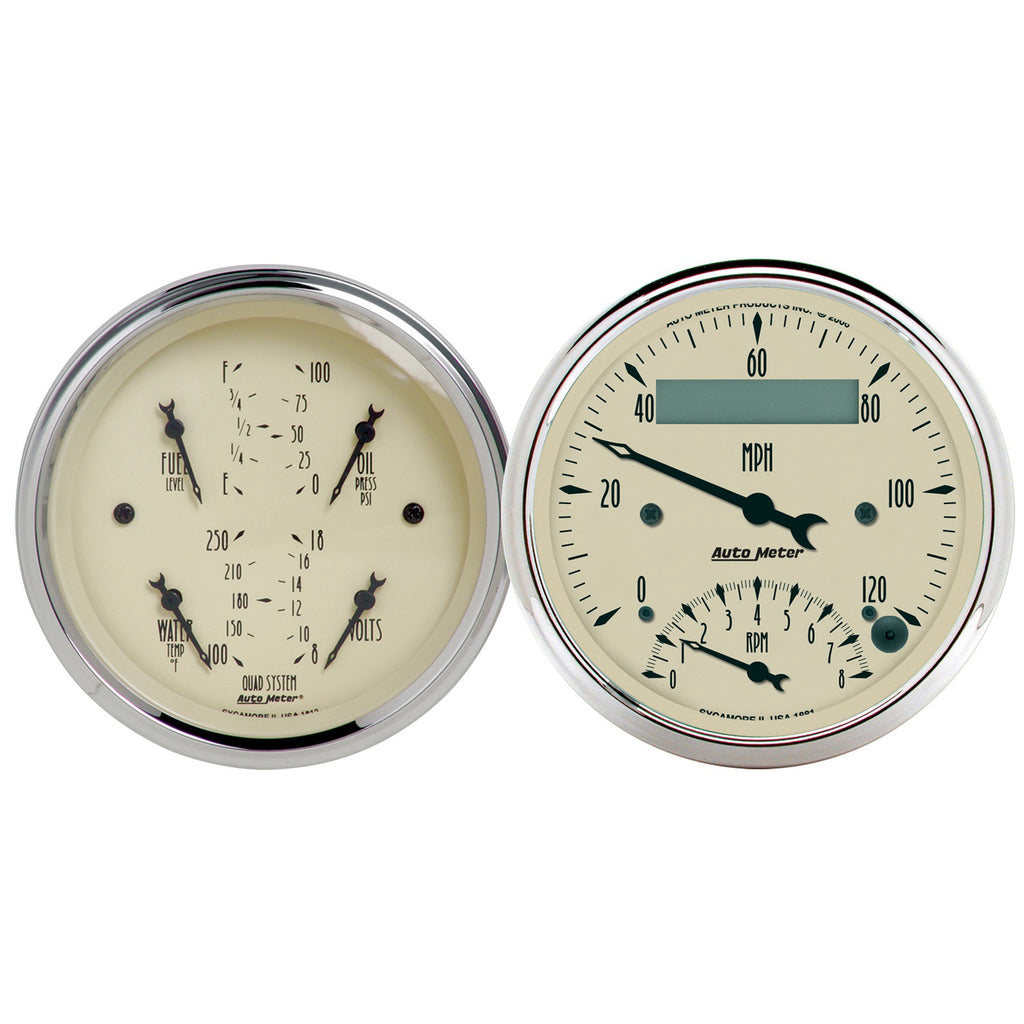

Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 240 Ohms Empty To 33 Ohms Full (Compatible With Autometers 3262 Fuel Level Sender).

• Traditional incandescent lighting illuminates around the perimeter of the dial
• Kit includes fuel level sender (240E/33F)

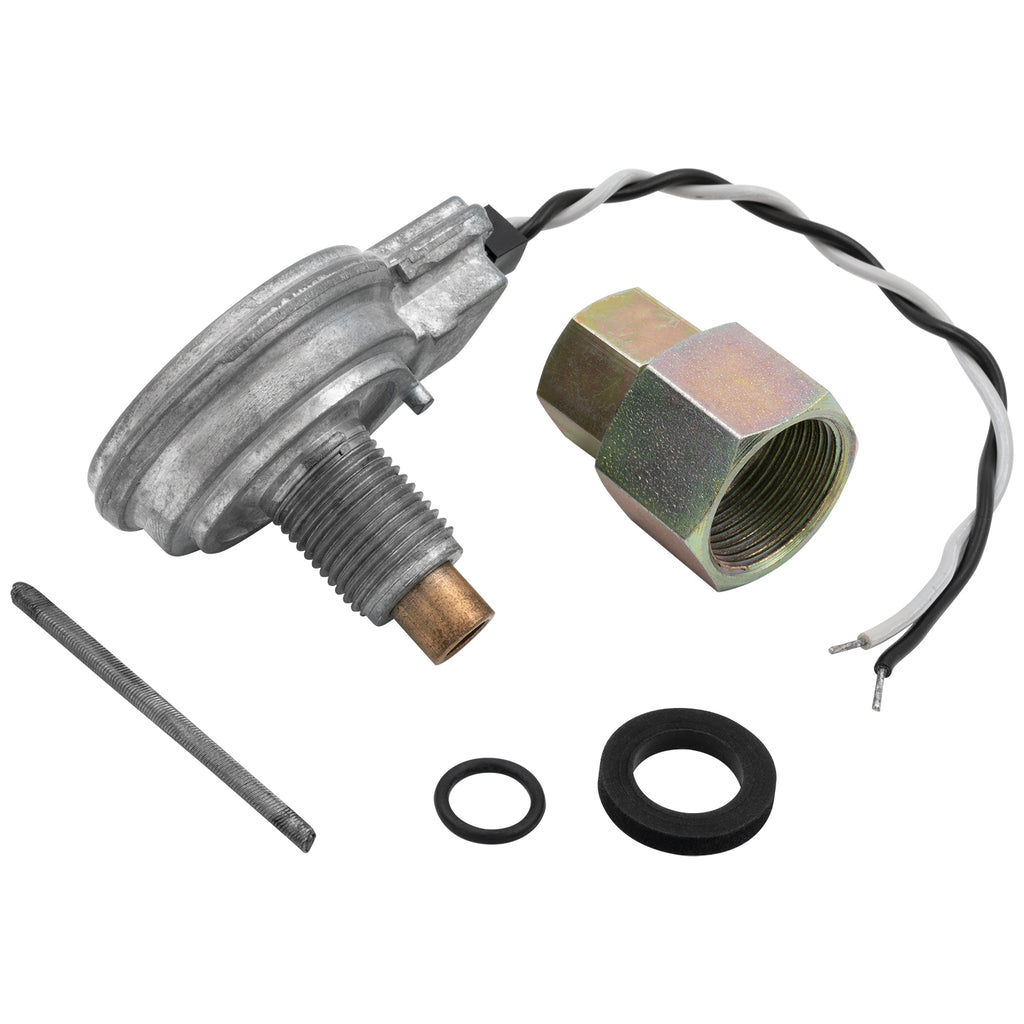

• oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)
• sending unit adapters (1/4" , 3/8" , and 1/2" NPT adapters)
• bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
• Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
• Tachometer is compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
• Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
• Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074018206
• Add-On: N/A

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8.75 x 17.75 x 4.5 inches
• Weight: 4.85 POUNDS
