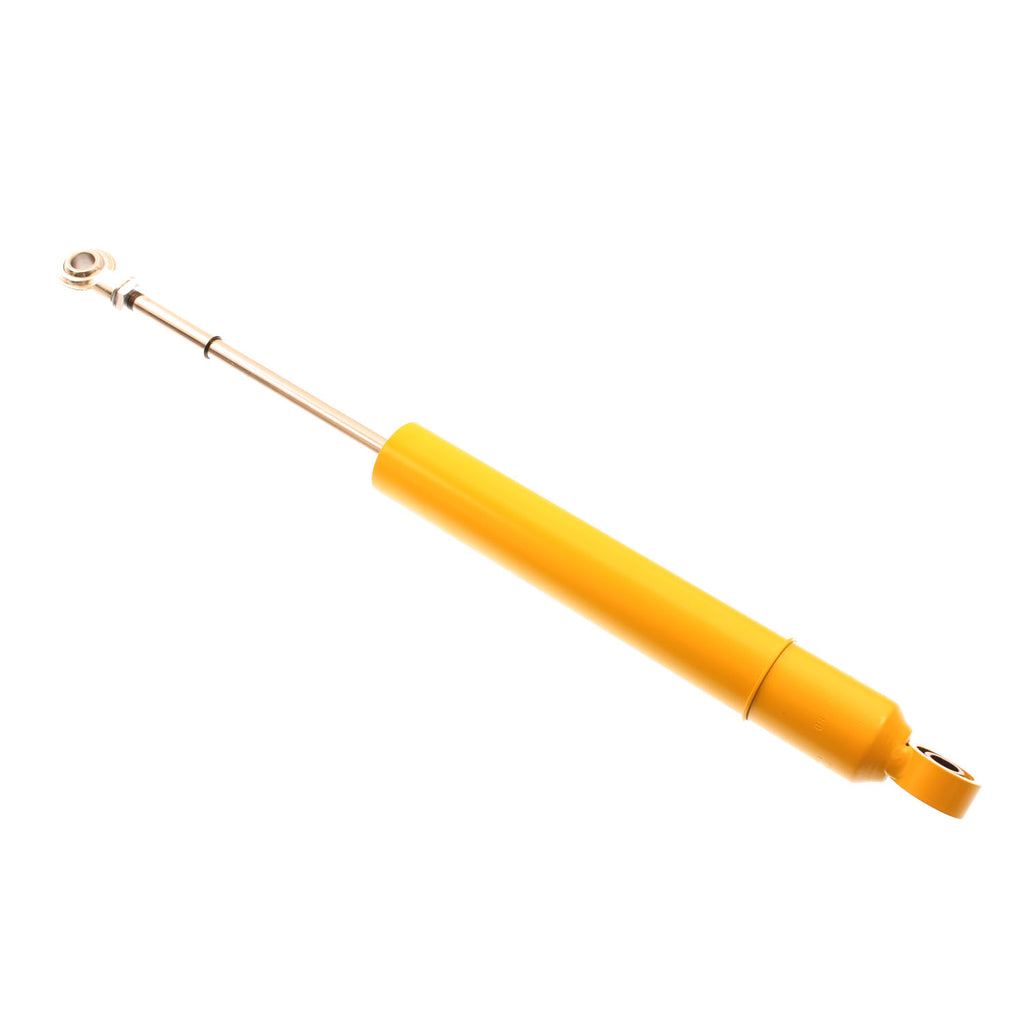

Bilstein G Series shock absorbers feature a steel monotube body with a 36mm piston designed for a variety of motorsports applications. These shock absorbers are available in 6 and 7 inch strokes with multiple valve setting options that provide optimal weight transfer and feel. They can also be converted to a coilover design (kit sold separately) for multiple platforms on dirt and asphalt. G Series shock absorbers are ideal for racers needing a lightweight high performance option with fade free handling and control.
- 36mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications
- Available for standard and coilover applications
Attributes:
- Brand Name: Bilstein
- GTIN: 00651860489407
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-coilover)
- Body Diameter (ID): 36mm
- Body Material: Steel
- Boot Included: No
- Collapsed Length (IN): 12.68
- Collapsed Length (MM): 322.0
- Compression @0.26m/s: 730
- Extended Length (IN): 19.86
- Extended Length (MM): 504.5
- Finish: Yellow Paint
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- PartType: Shocks / Struts
- Piston Type: Digressive
- Rebound @0.26m/s: 895
- Segment: Motorsports
- Series: G Series
- Spring Hardware: B4-BOA-0000187
- Spring Seat Included: No
- Upper Mount Type: 1/2in Heim
- Valving Identifier: 4545
Extended Information:
- Country of Origin: DE
- Emissions : CARB Eligible
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 22.4500 x 2.9500 x 2.9500 inches
- Weight: 3.0900 POUNDS
