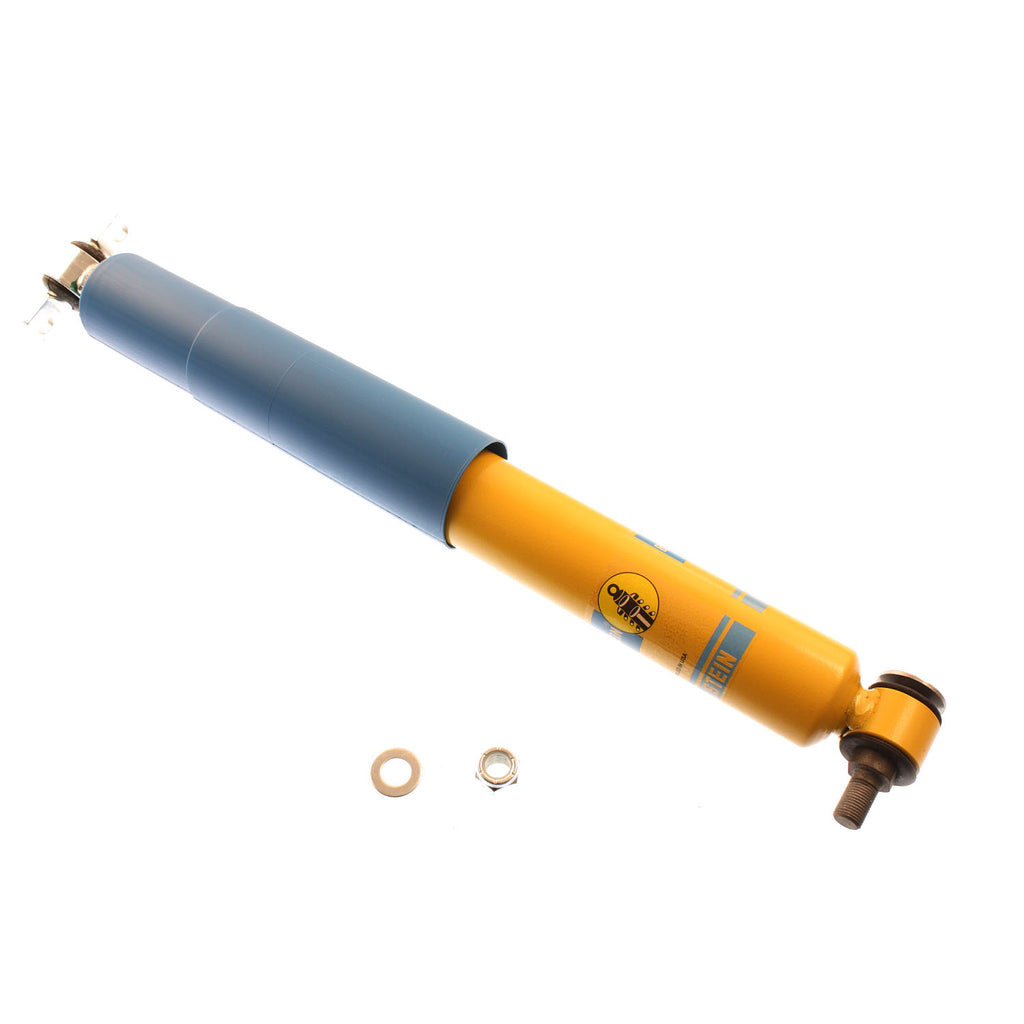

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Direct fit (OE) mounting design
Attributes:
- Brand Name: Bilstein
- GTIN: 00651860608099
- Adjustable Damping: Non-Adjustable
- Body Design: Stock Mount Smooth Body
- Body Diameter (ID): 46mm
- Body Material: Steel
- Boot Included: Blue Straight
- Collapsed Length (IN): 13.11
- Collapsed Length (MM): 333.0
- Compression @0.26m/s: 335
- Compression @0.52m/s: 520
- Extended Length (IN): 20.28
- Extended Length (MM): 515.0
- Finish: Yellow Paint
- Internal Design: Monotube
- Lower Mount Type: Cantilever
- PartType: Shocks / Struts
- Piston Type: Digressive
- Rebound @0.26m/s: 430
- Rebound @0.52m/s: 670
- Segment: Motorsports
- Series: AK Series
- Spring Seat Included: No
- Upper Mount Type: Bar Pin
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 3.5500 x 3.5500 inches
- Weight: 4.6300 POUNDS
