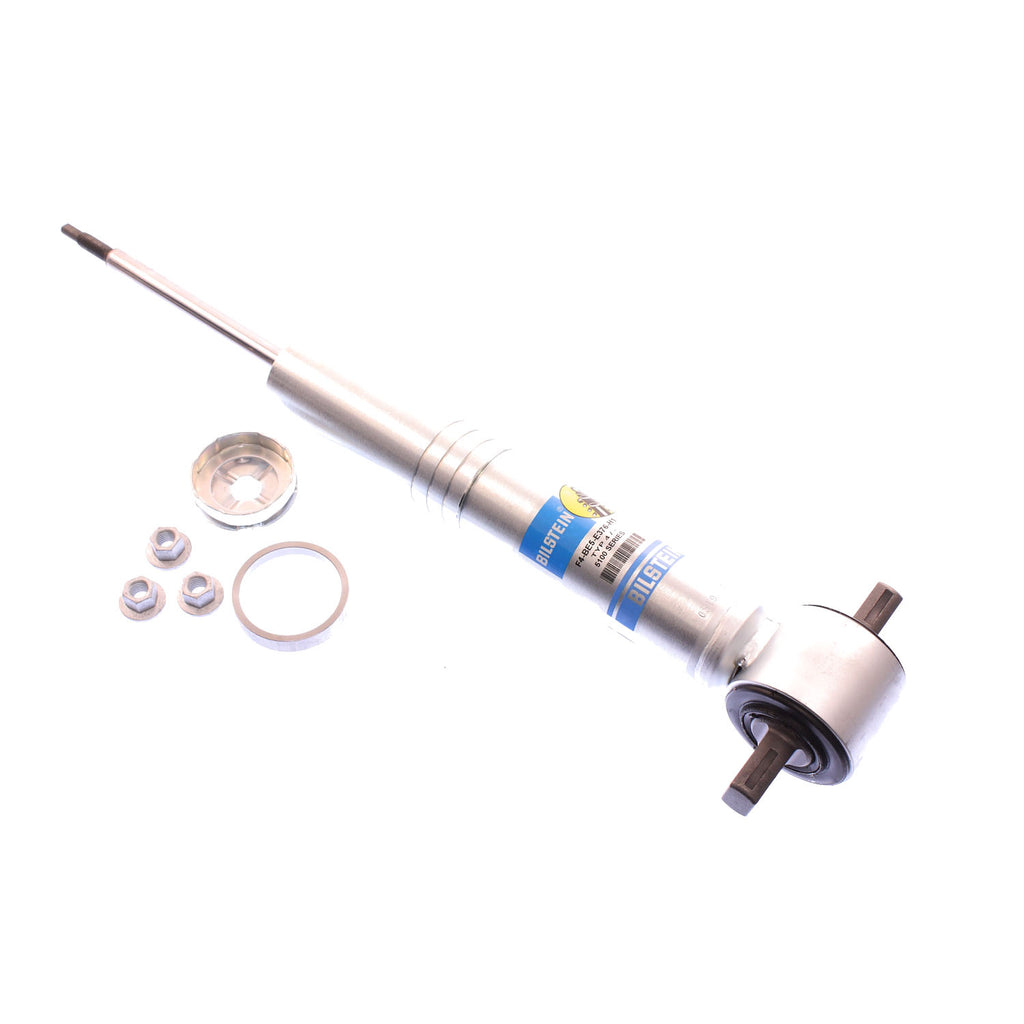

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Attributes:
- Brand Name: Bilstein
- GTIN: 00651860640167
- Adjustable Damping: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Body Diameter (ID): 46mm
- Boot Included: No
- Collapsed Length (IN): 12.95
- Collapsed Length (MM): 329.0
- Extended Length (IN): 18.48
- Extended Length (MM): 469.3
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: Bar Pin
- PartType: Shocks / Struts
- Reservoir: No
- Segment: Light Truck
- Series: B8 5100 (Ride Height Adjustable)
- Spring Seat Included: No - Reuse OEM
- Upper Mount Type: Stem
Extended Information:
- Country of Origin: MX
- Emissions : CARB Eligible
- Life Cycle Status: Superseded
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 4.1500 x 4.1500 inches
- Weight: 4.6300 POUNDS
