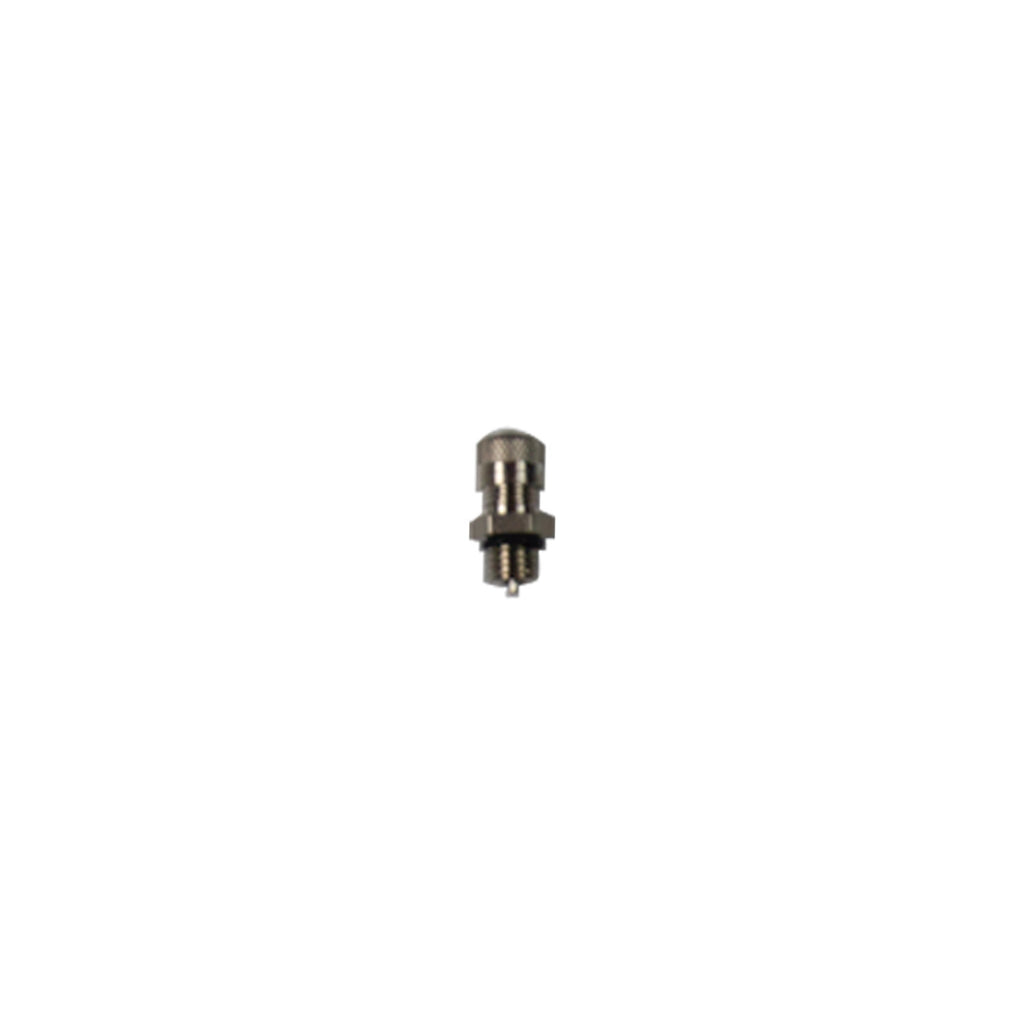

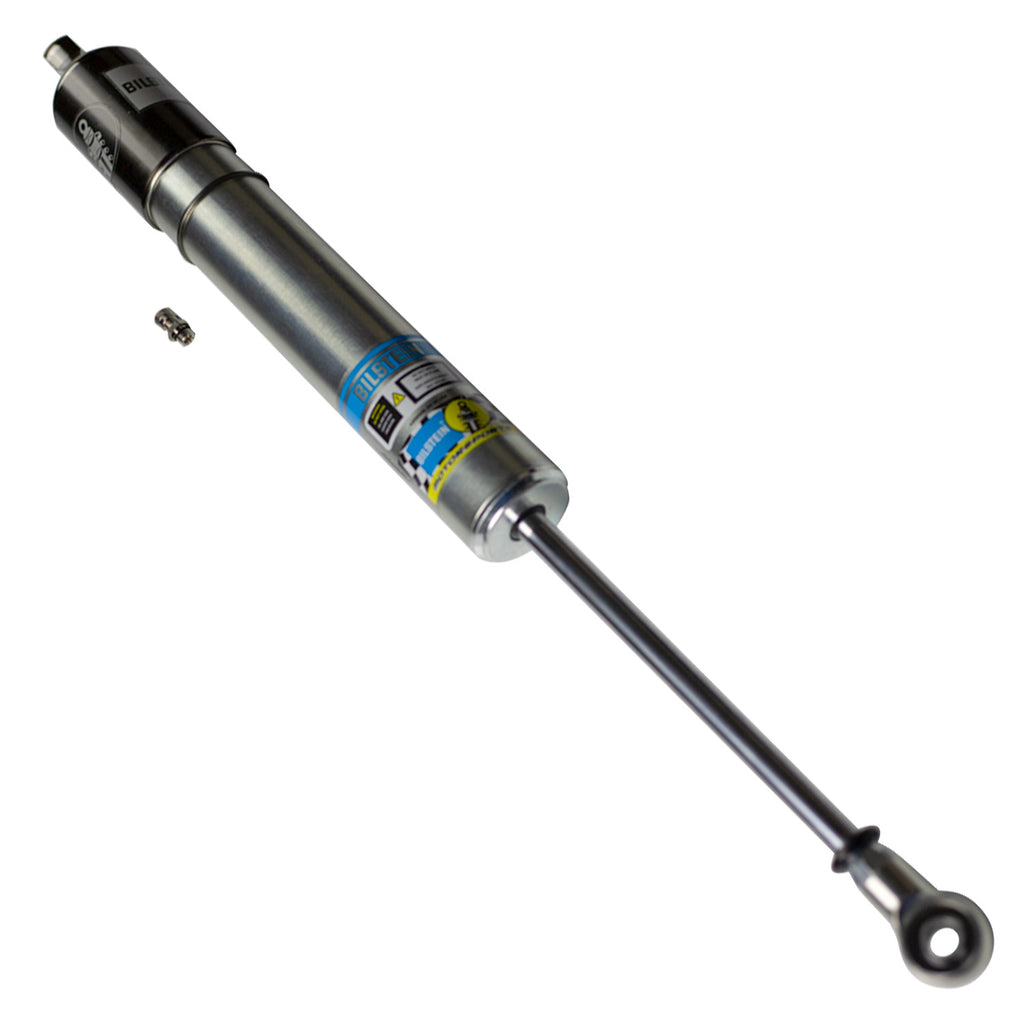

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims. These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately). SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.
- Base Valve design delivers ultra low rod pressures and elminates gas preload
- Modular steel body design allows racer rebuildability
- Modular steel body design allows racer rebuildability
Attributes:
- Brand Name: Bilstein
- GTIN: 00651860880297
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body Screw Top (Non-coilover)
- Body Diameter (ID): 46mm
- Body Material: Steel
- Boot Included: No
- Collapsed Length (IN): 15.87
- Collapsed Length (MM): 403.2
- Extended Length (IN): 23.79
- Extended Length (MM): 604.4
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- PartType: Shocks / Struts
- Piston Type: Digressive
- Segment: Motorsports
- Series: SNS2 Series (BV)
- Spring Hardware: B4-BOA-0000117
- Spring Seat Included: No
- Upper Mount Type: 1/2in Heim
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 2.9500 x 2.9500 inches
- Weight: 5.3800 POUNDS
