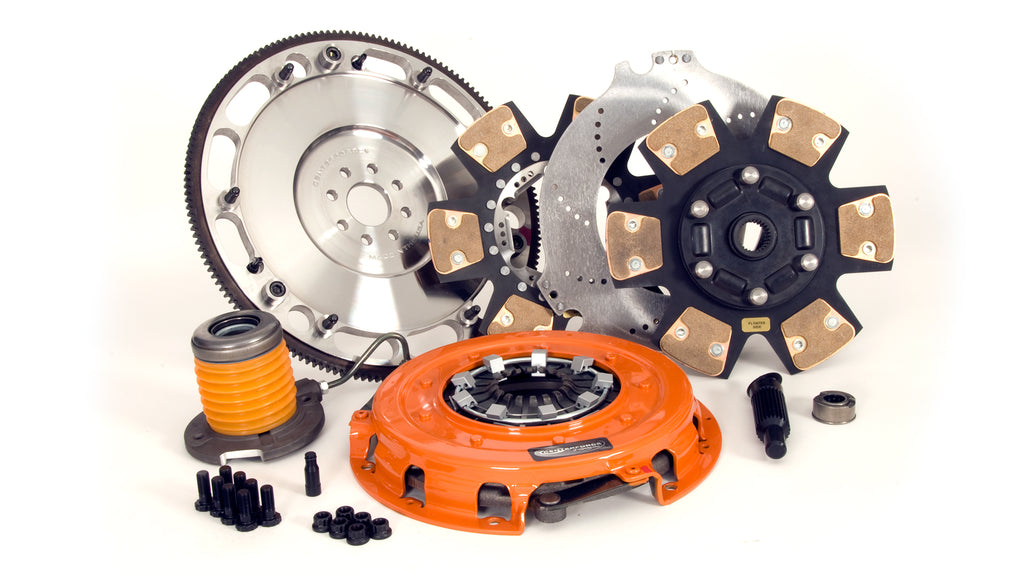

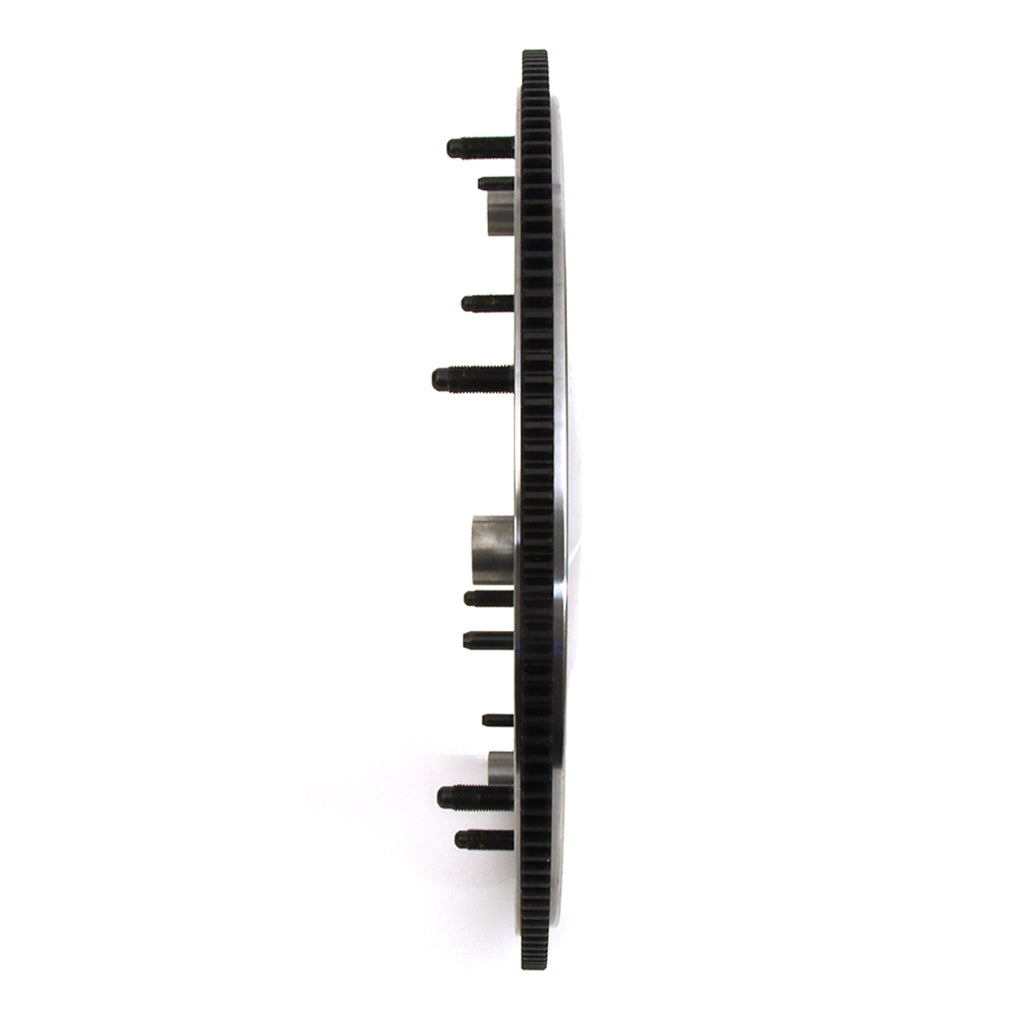

The Centerforce(R) DYAD XDS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 700 to 1600 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with metallic paddle/button style friction material providing increased holding capacity. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
- 10.4" Diameter
- 264.2mm Diameter
- 1-1/8" x 26 Spline Input Shaft
- Holds Up To 1600 ft/lbs of Torque
- Weighs 48.45 lbs
- Sprung Hub Disc with Cerametallic Material
- 164 Tooth R.Gear, 8 Bolt Crank, and 0 oz Counter Balance
- Ford Mustang 8 Cylinders
Attributes:
- Brand Name: Centerforce
- GTIN: 00788442034394
- Alignment Tool Included9: Yes
- Clutch Disc Diameter8: 10.4
- Clutch Disc Diameter9: 264.2
- Counterweight Assist2: YES
- Crankshaft Bolt Hole Quantity7: 8
- Disc Material4: Cerametallic
- Disc Quantity0: 2
- Disc Type Sprung Solid: Sprung
- Disc Type5: 6-Paddle
- Flywheel Counter Balance Weight7: 0
- Flywheel Crank Bolt Size1: M10 x 1.00 x 25
- Flywheel Crank Flange Register8: 1.750
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity3: 26
- Installed Height2: 2.960
- Made In The USA9: Assembled
- Material2: Billet Steel Flywheel / Nodular Iron Pressure Plate / Cerametallic Button Style Friction
- Mounting Hardware Included0: Yes
- Out of Package Weight: 48.45
- Pilot Bushing Included7: Yes
- Ring Gear O.D.7: 14.236
- Tooth Quantity: 164
- Torque Capacity: 1600
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
- Weight: 52.95 POUNDS
