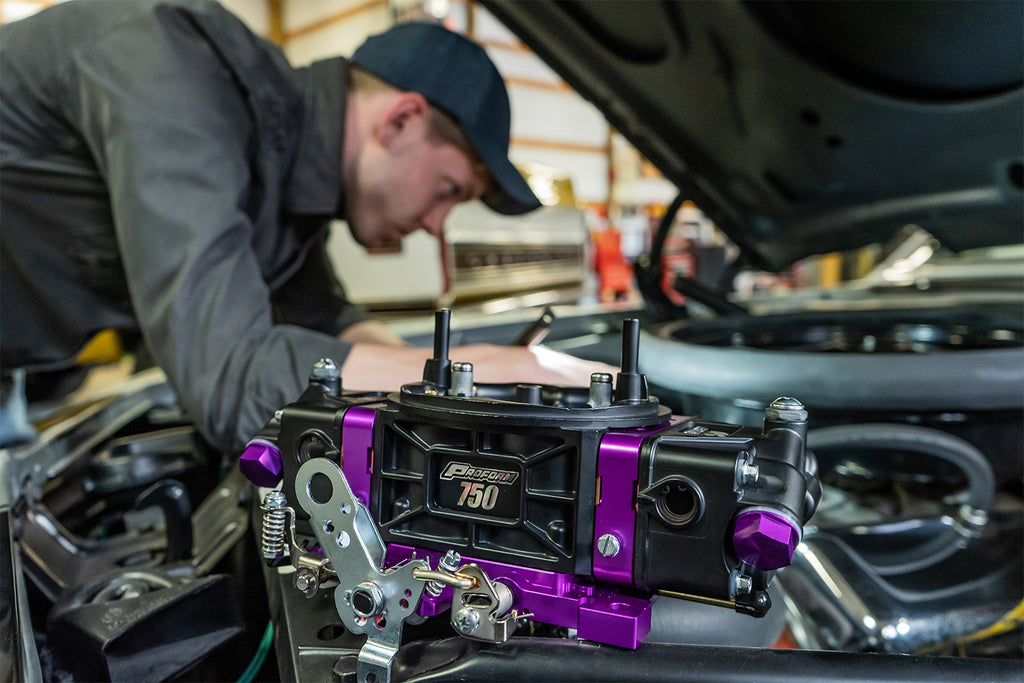

PROFORM's Race Series is Expanding to now include Draw-Thru Supercharger Carburetors so you can get a leg up on the competition!. PROFORM's new Race Series Carburetor is hand assembled in the U.S. utilizing the PROFORM's Next Gen (new in 2022) High-Flow Carburetor Main Body, durable billet metering blocks, a high performance billet throttle baseplate, and Next Gen (new in 2022) Aluminum Fuel Bowls. The PROFORM Race Series Carb includes: PROFORM High-Flow Carburetor Main Body with Dyno-Proven Horsepower and Torque Gain, Adjustable Screw-In Air Bleeds, No Air Horn, Choke Tower, or Choke Control, and the best part is that it uses standard service and tuning components. PROFORM Billet Throttle Base Plates with Adjustable Secondary Air Flow Cam Bracket, and Power Valve Blow Out Protection, Timed and Full Vacuum Tubes for Accessories and Tuning, Button Torx Head Throttle Plate Screws, Slabbed Shafts, Slip-Link Mechanical Secondary Linkage, Serviceable Throttle Levers. PROFORM Billet Metering Blocks that are Durable, No Warping or Porosity Problems, Changeable Idle Feed Restriction, and new Fuel Control Baffling. PROFORM Next Gen Aluminum Fuel Bowls that are Lightweight and include Sight Glass Windows for easy float adjustment, and in 2022 Internal Baffling and a Lower Fuel Ramp for Increased Fuel Control.
- Lightweight Aluminum Construction
Attributes:
- Brand Name: Proform
- GTIN: 00037995711567
- Adjustable Float Level: Yes
- Air Cleaner Flange Diameter: 0.25
- Barrel Quantity: 4
- Base Length: 5.25
- Base Width: 5.25
- Body Color: Silver
- Body Height: 3.25
- Body Material: Aluminum
- Center Hung Floats: Yes
- Choke Type: Manual
- Flange Shape: 4150 & 8090
- Flange Type: Spread Bore
- Float Material: Nitrophyl
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Inlet Fitting Thread Diameter: 0.875
- Linkage Attached: Yes
- Main Venturi Diameter: 1.875
- Marine Approved: No
- Mounting Hardware Included: No
- Mounting Hole Diameter: 0.375
- Mounting Hole Quantity: 4
- Primary Jet Diameter: 0.0975
- Secondary Barrel Type: Mechanical
- Secondary Jet Diameter: 0.11
- Small Venturi Diameter: 1.75
- Spacer Included: No
- Street Legal: Yes
Extended Information:
- Country of Origin: US
- Emissions : Racing or Pre-Emissions Use Only
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 13.5 x 11.25 x 7.5 inches
- Weight: 9.8 POUNDS
