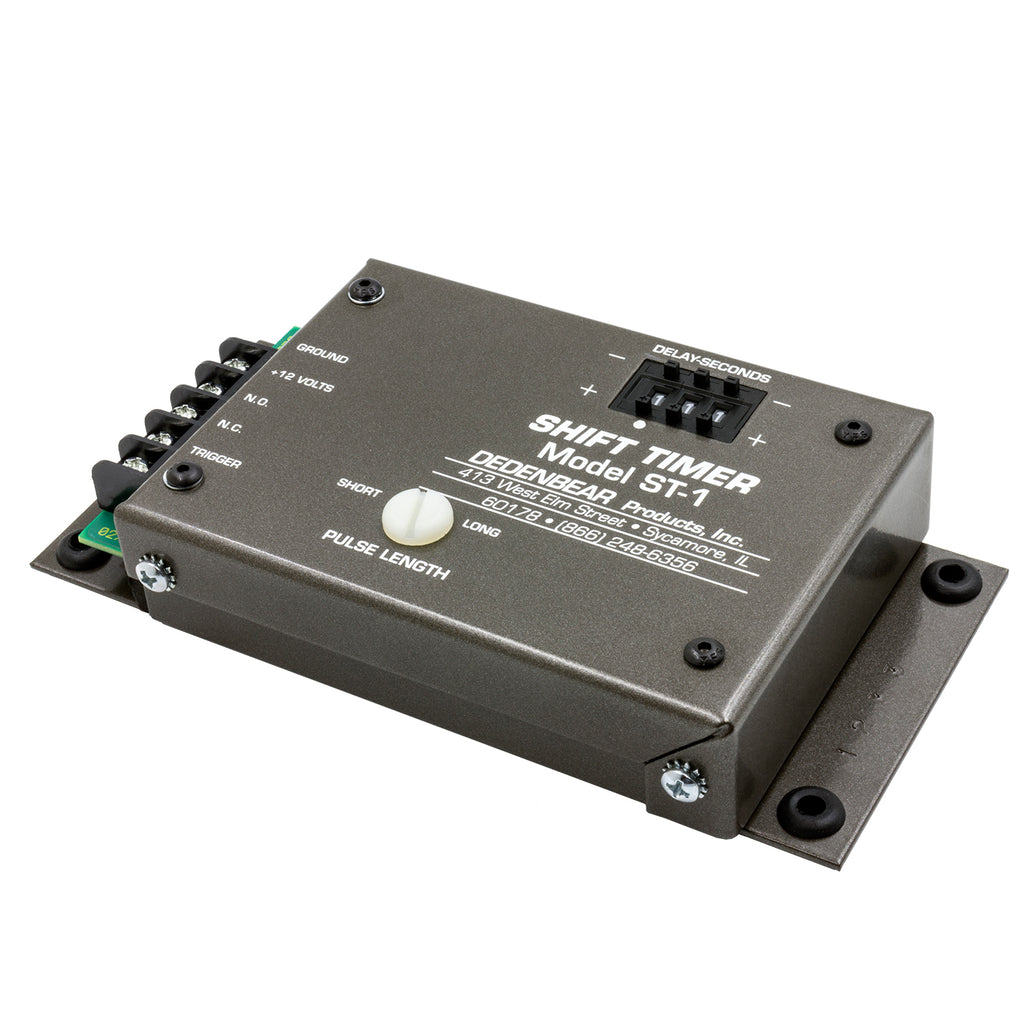

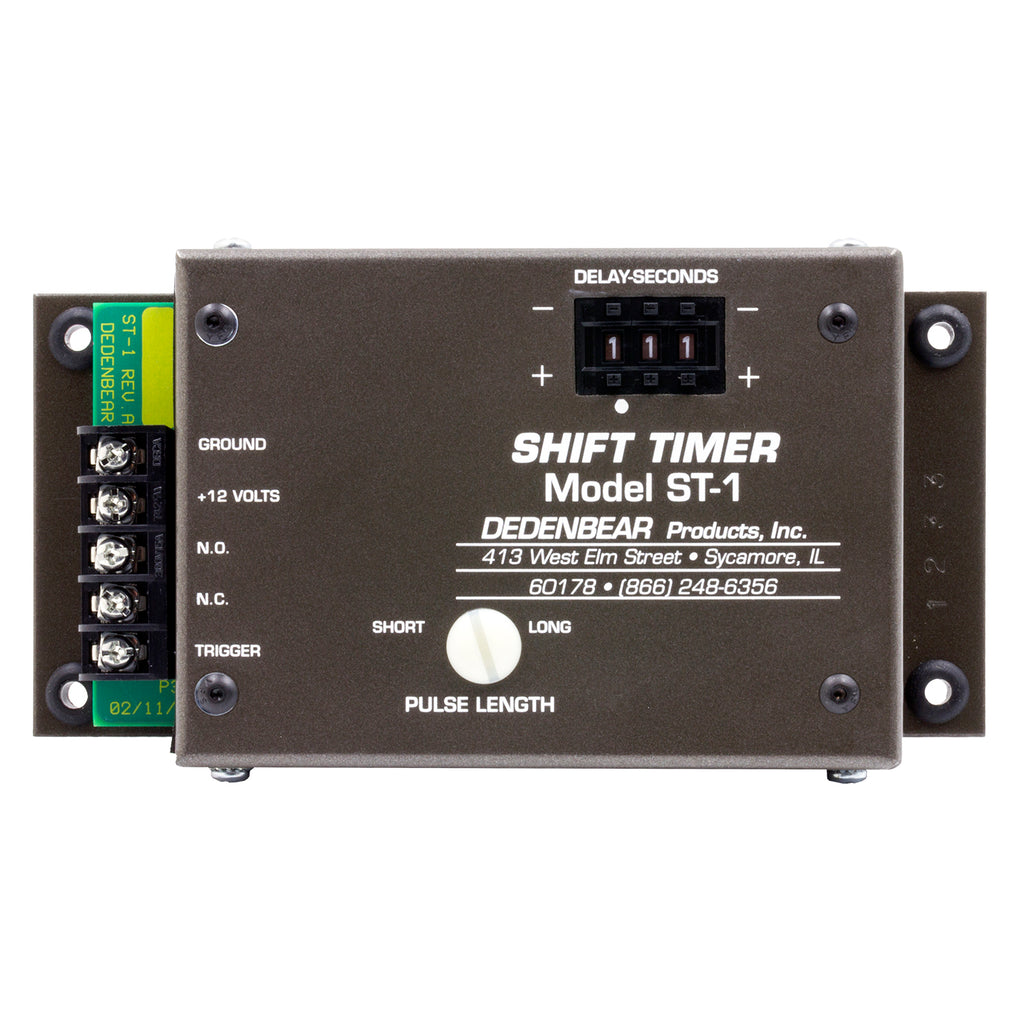

The Dedenbear St1 Is A Single Stage Timer That Can Be Used To Activate A Device Such As A Shifter, Throttle Stop, Nitrous Solenoid, Or Timing Retard Based On Time Rather Than Rpm. The Shift Timer Works Particularly Well In Cars That Have Loose Converters. The Engine In A Car With A Loose Converter Tends To Run At A Fixed Rpm Until The Converter Locks Up And Stops Slipping. Since The Engine Runs In A Narrow Rpm Band Near The Intended Shift Point For A Large Portion Of The Run, The Actual Shift Point Can Vary Widely. The St1 Will Allow The Car To Shift At A Precise Point During A Run And The Engine Rpm Doesnt Matter.

• Adjustable timer from 0-9.99 seconds programmed with push button thumbwheels
• Selectable output of 0.5 second pule for applications like shifter activation, and long 17 second pulse for applications such as nitrous oxide, throttle stops, etc.
• Output Terminals are Normally Closed and Normally Open to either apply or remove 12V power
• Release of the transbrake or line lock solenoid starts the timer at the beginning of the run.
• Small size for maximum mounting versatility. Measures 6.50 in. W x 3.38 in. H x 1.25 in D.
• Compatible with 12 and 16 volt electrical systems

Attributes:

• Brand Name: Dedenbear
• GTIN: 00046074165023
• Add-On: SS2;SS4;SS5;SS6;L1;L2;CC3;2163;BEX-5000;2159;2172;2183
• Size - Metric - MM: 165mm x 86mm x 32mm
• Size - Standard - IN: 6.50in x 3.38in x 1.25in

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.5 x 11.5 x 3.5 inches
• Weight: 1.5 POUNDS
