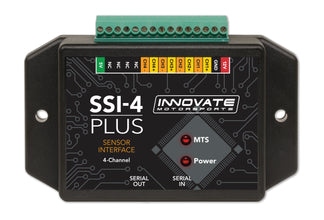

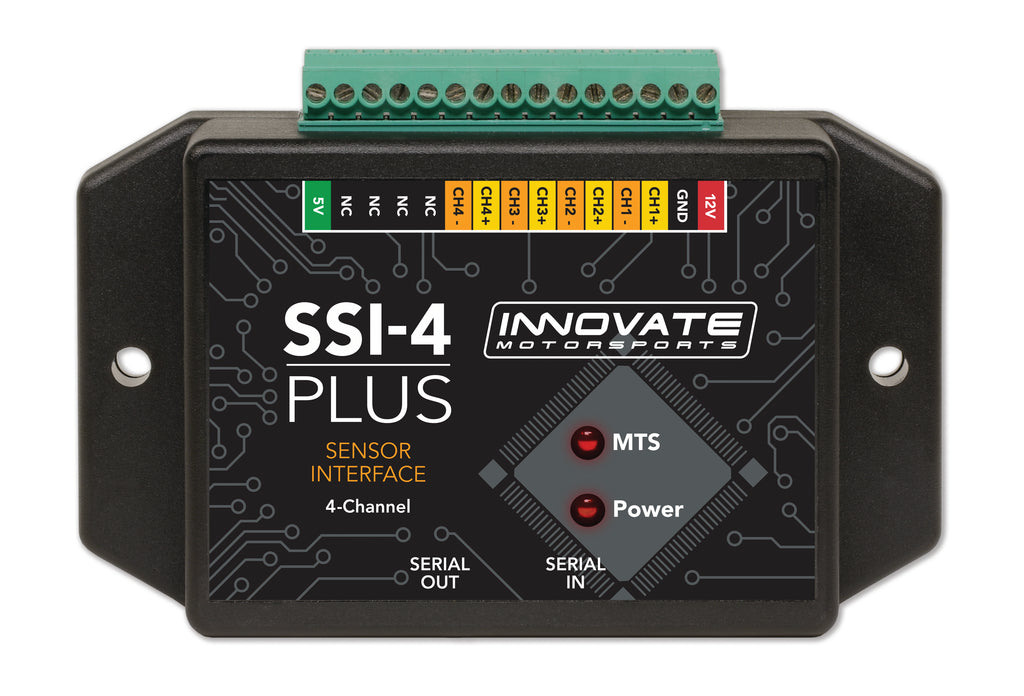

The Ssi-4 Plus Will Allow The Capture Of Data From 4 External Sensors. These Sensors Can Be Frequencies Such As Engine Rpm And Speed Sensors Or 0-5V References Like Map Sensors And Pressure Transducers. The Ssi-4 Plus May Be Used As A Stand-Alone System Or Integrated With Other Innovate Motorsports Mts Products To Create A Log Chain. The Ssi-4 Is Also A Key Component Of Innovate Motorsports Modular Tuning System (Mts). Using The Ssi-4 Pluss Serial Ports You Can Daisy-Chain Other Innovate Devices Such As The Mtx-L, Lm-2, Lc-2, And Tc-4 Plus.
- Simple sensor device that adds 4-inputs to an MTS Log Chain
- Channel 1 and 2 inputs can be configured for RPM, Speed (VSS), Frequency, and 0-5 volt. In addition to the above, the channel 2 input can be used for duty cycle or dwell.
- Channel 3 and 4 inputs can be used for 0-5 volt
- 5 volt output to power external sensors
- The SSI-4 PLUS includes the SSI-4 PLUS, Serial Program Cable, Molex to Molex Patch Cable (to daisy chain with other MTS compatible devices), and manual.
Attributes:
- Brand Name: Innovate Motorsports
- GTIN:
- Add-On: 3877
- Included Wire Harness: 3840, 3846
- Related Item: 77020
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Announced
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Weight: 0 POUNDS
